Control Rod Inspection




Control Rod Inspection

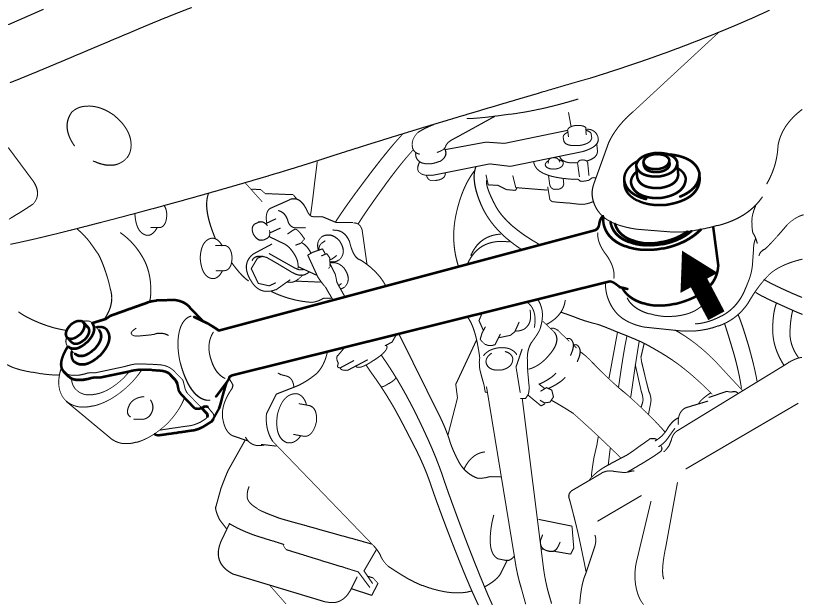

- Inspect right and left control rod bushings for cracks, deformation or damage. Replace bushing(s) if defective.
- Inspect each control rod for cracks, deformation or other damage. Replace control rod if defective.
