Front Suspension

Suspension Arm Joint Dust Cover Disassembly and Reassembly

Disassembly

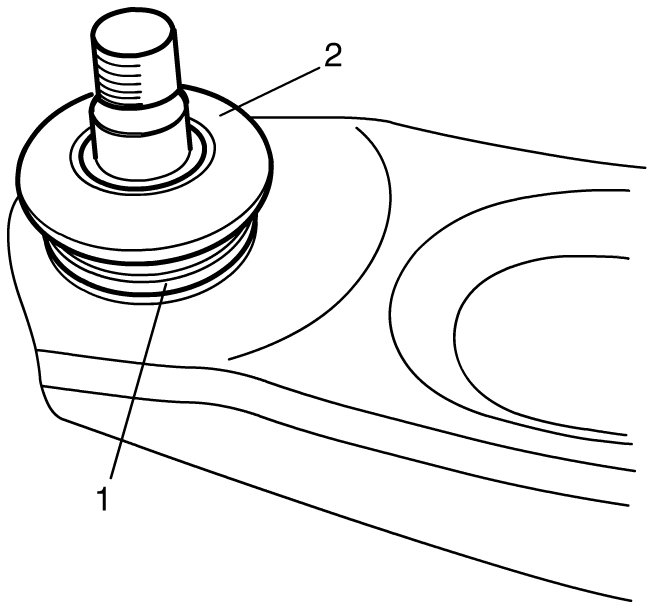

1) Remove suspension arm joint dust cover ring (1).
2) Remove suspension arm joint dust cover (2) using flat-bladed screwdriver.





Reassembly

Reverse disassembly procedure, noting the following point.

- If suspension arm joint dust cover is replaced, apply a generous amount of grease (included in suspension arm joint dust cover set) to suspension arm joint and inside of suspension arm joint dust cover.
