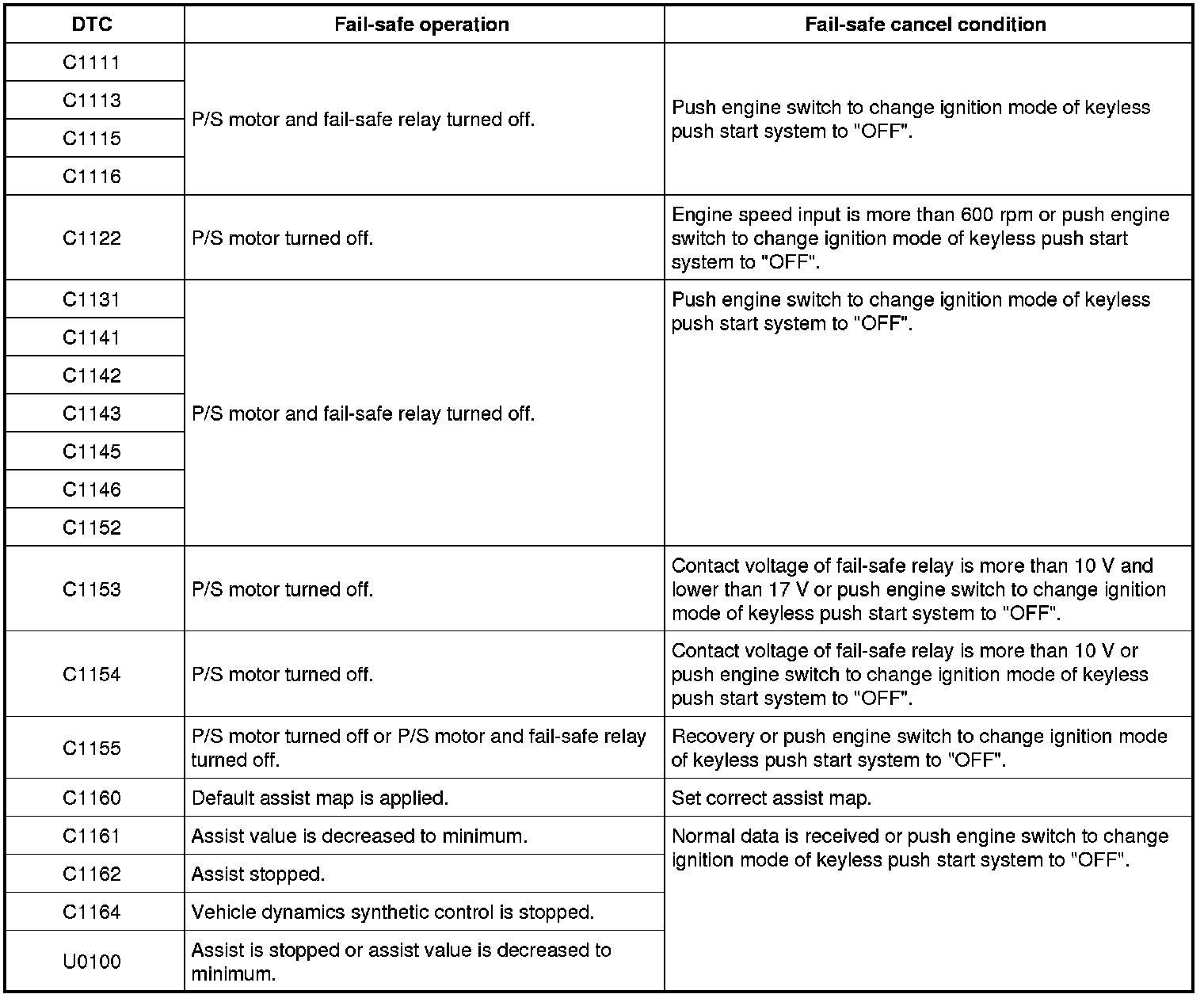

Fail-Safe Table




Fail-Safe Table

When any of the following DTCs is detected, P/S control module enters fail-safe mode as long as malfunction continues to exist. The fail-safe mode is canceled when the applicable cancel condition is satisfied.
