Mid Inside Antenna Removal and Installation




Mid Inside Antenna Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Remove center console box. Center Console Box Removal and Installation

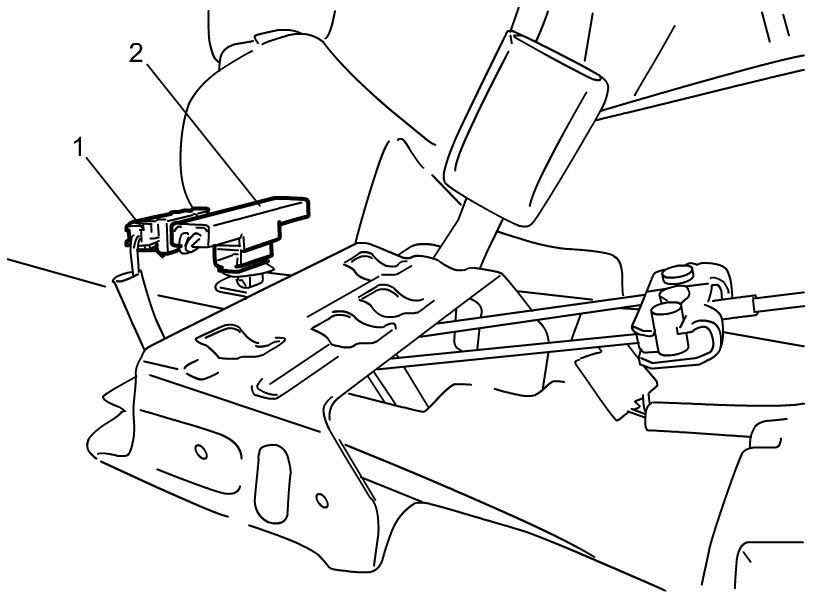

3) Disconnect connector (1), and then remove mid inside antenna (2).






Installation

Reverse removal procedure.
