DTC Check

DTC Check

1) Confirm that ignition mode of keyless push start system is in "OFF".

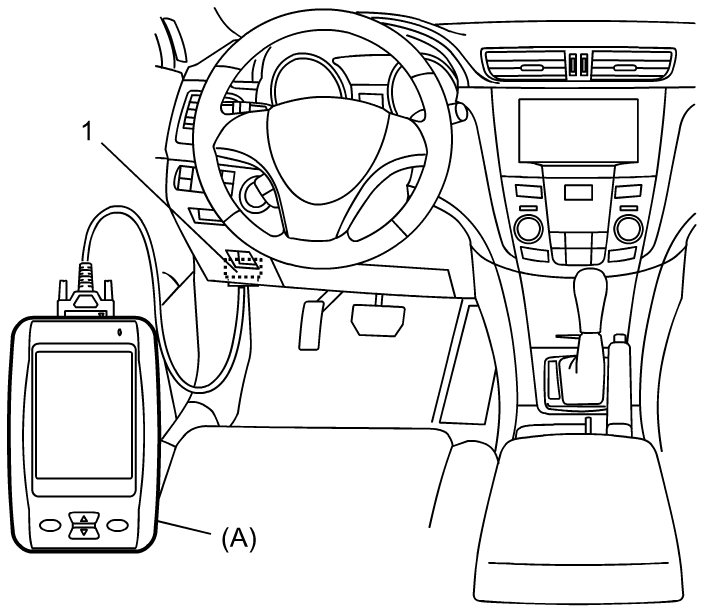

2) Connect SUZUKI scan tool to DLC (1) located on underside of instrument panel at driver's seat side.
Special Tool

(A): SUZUKI scan tool (SUZUKI-SDT)





3) Push engine switch to change ignition mode to "ON". Read DTC according to instructions displayed on SUZUKI scan tool and print it or write it down. Refer to SUZUKI scan tool operators manual further details.
4) Push engine switch to change ignition mode to "OFF", and disconnect SUZUKI scan tool from DLC.
