IMT Valve Actuator Removal and Installation




IMT Valve Actuator Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Disconnect IMT valve actuator connector.

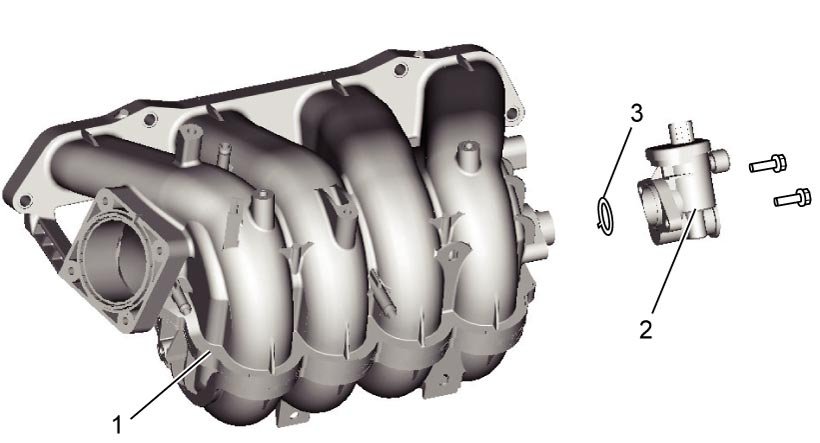

3) Remove IMT valve actuator (2) and gasket (3) from intake manifold (1).






Installation

Reverse removal procedure noting the following points:

- Use new gasket.
- Check that IMT valve operates properly after installation.
