Fuel Filler Cap Inspection

Fuel Filler Cap Inspection

NOTE:

Failure to use correct cap can result in EVAP leakage.

If cap requires replacement, be sure to use a cap with genuine SUZUKI parts.

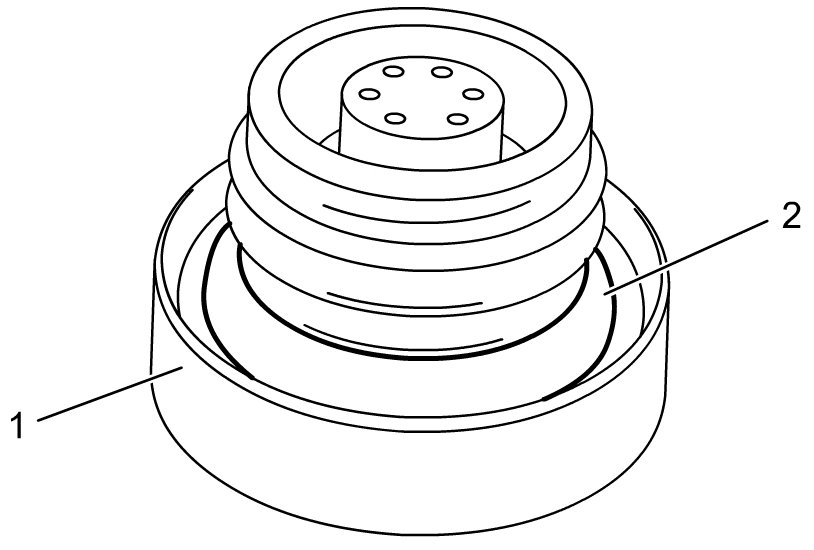

Remove cap (1), and check gasket (2) for deterioration or any damage. If gasket is defective, replace cap.
