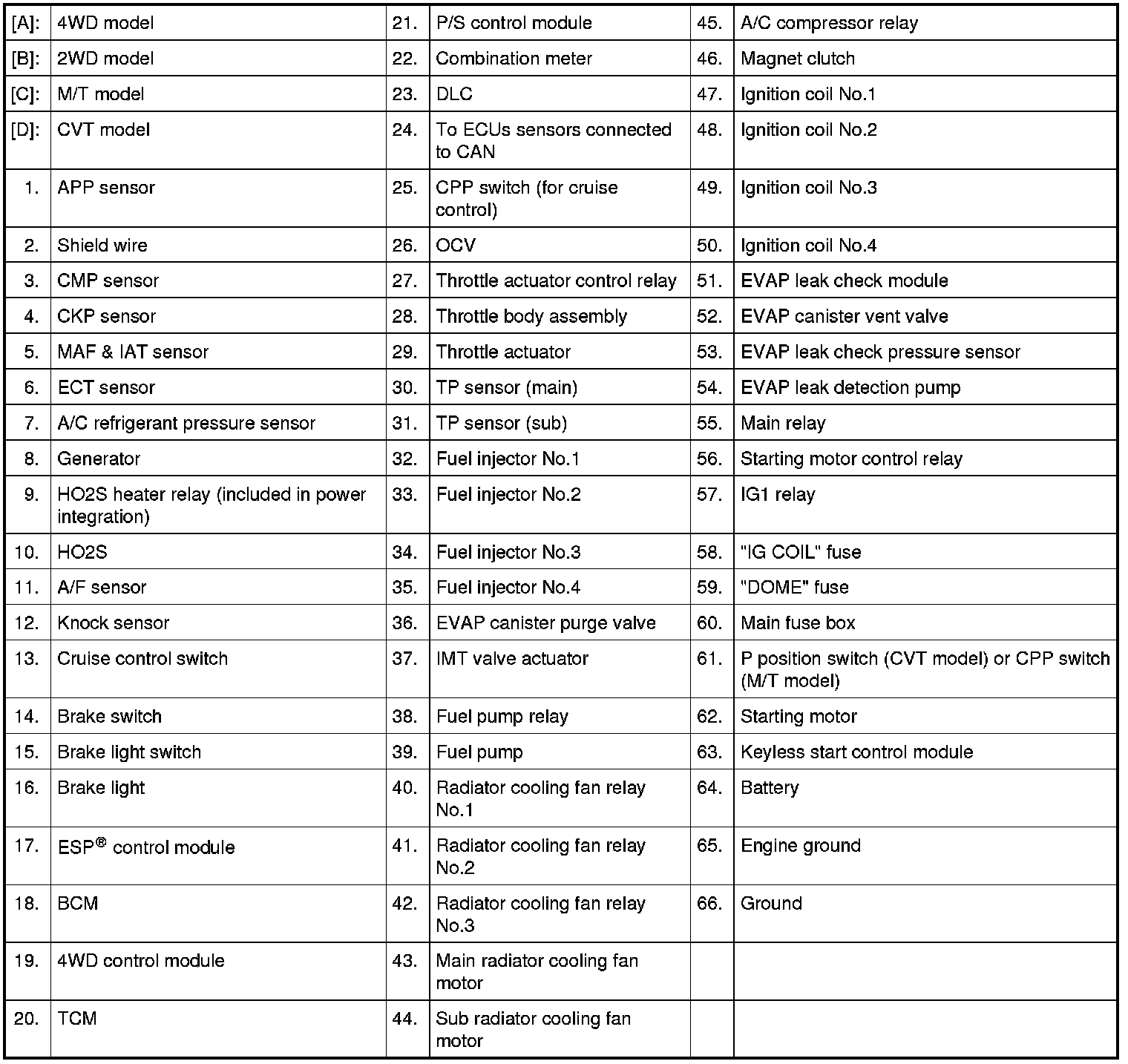

Engine Control System Circuit Diagram

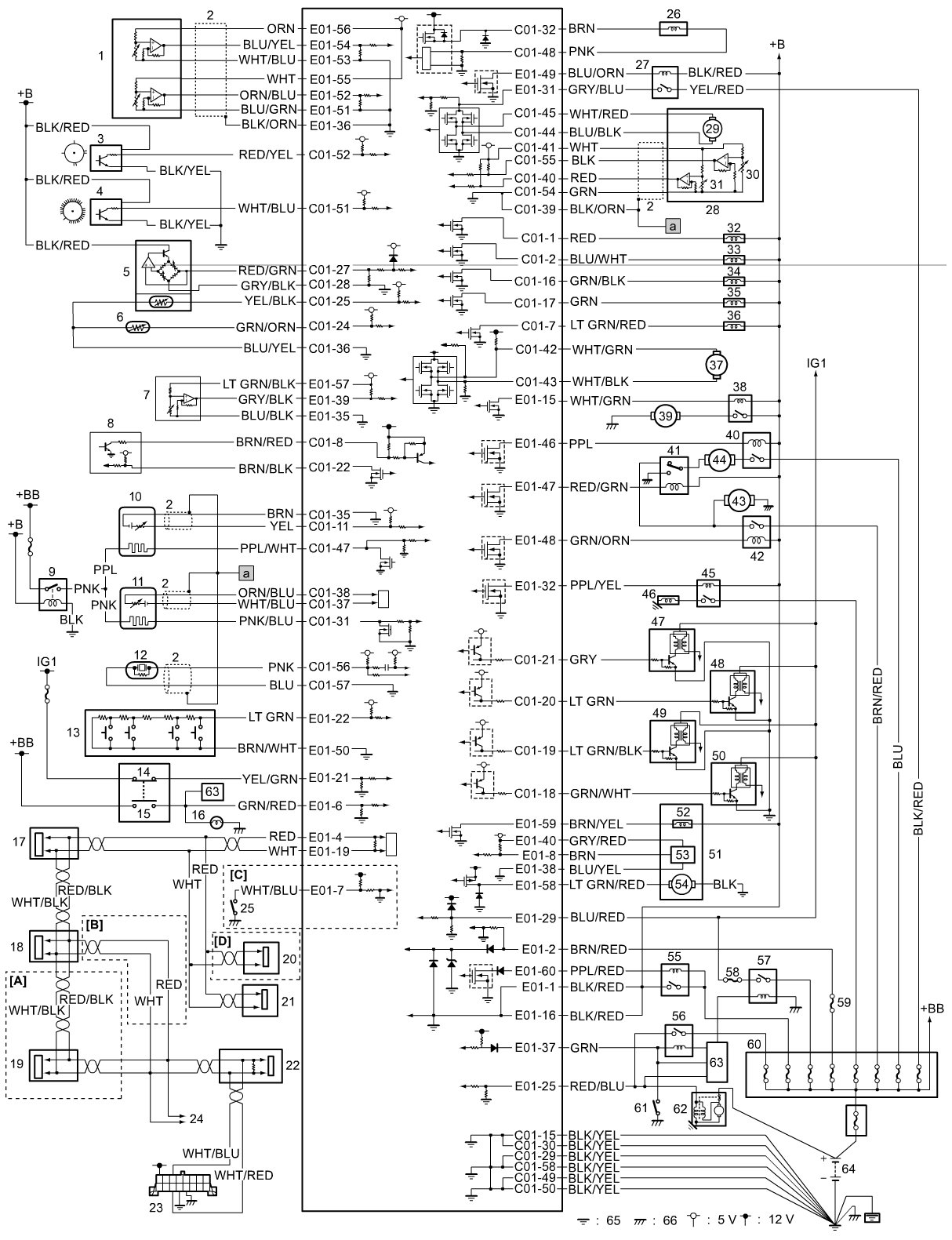

Engine Control System Circuit Diagram

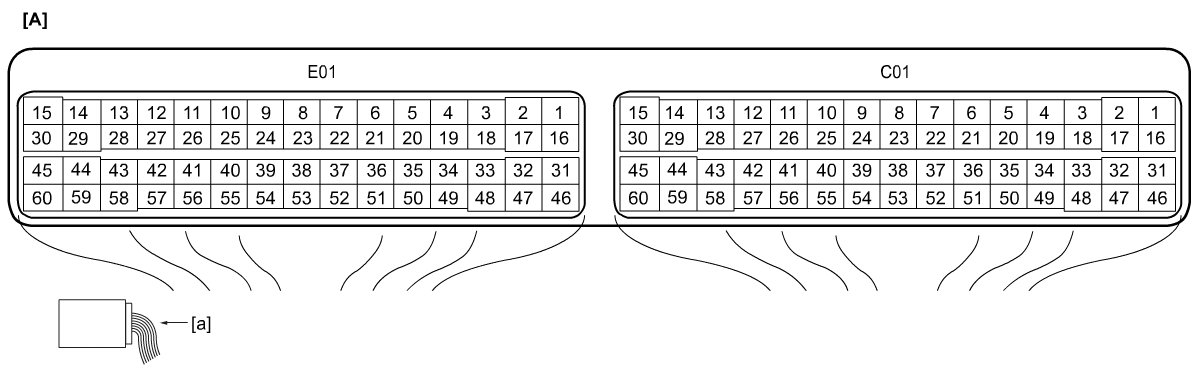

Terminal Arrangement of ECM Connector (Viewed from Harness Side)
