Front Wheel Bearing Check

Front Wheel Bearing Check

1) Confirm tightness of wheel nuts and retighten them to specified torque if necessary. Removal and Replacement
2) Hoist vehicle.

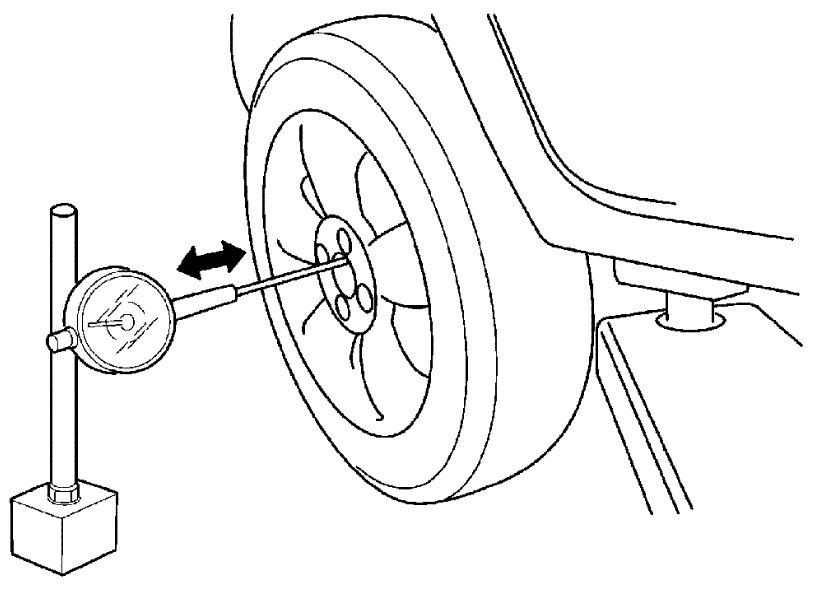

3) Check wear of wheel bearing. When measuring thrust play, apply a dial gauge to front wheel as shown in figure.

Replace front wheel hub assembly if defective.

Wheel bearing thrust play
Limit: 0.1 mm (0.004 in.)

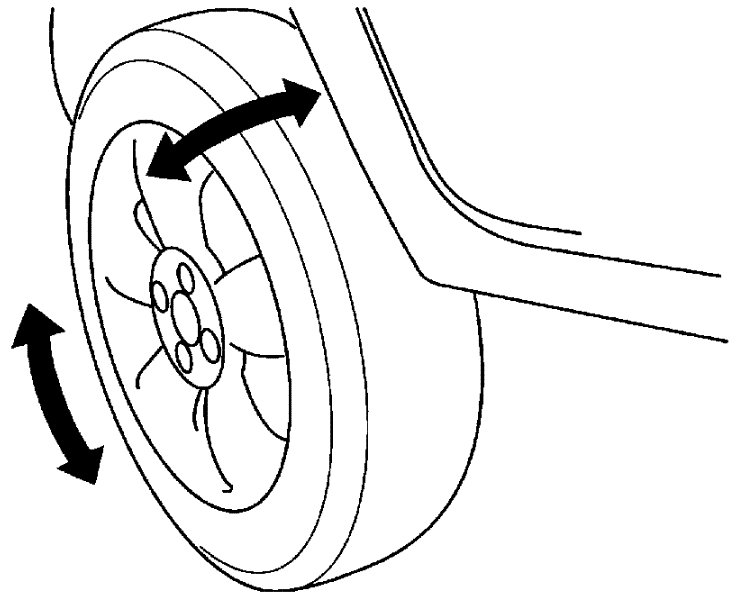

4) Check wheel bearing noise and smooth wheel rotation by rotating wheel.

Replace front wheel hub assembly if defective.
