Tire Pressure Sensor Inspection

Tire Pressure Sensor Inspection

Tire Pressure Sensor Removal and Installation

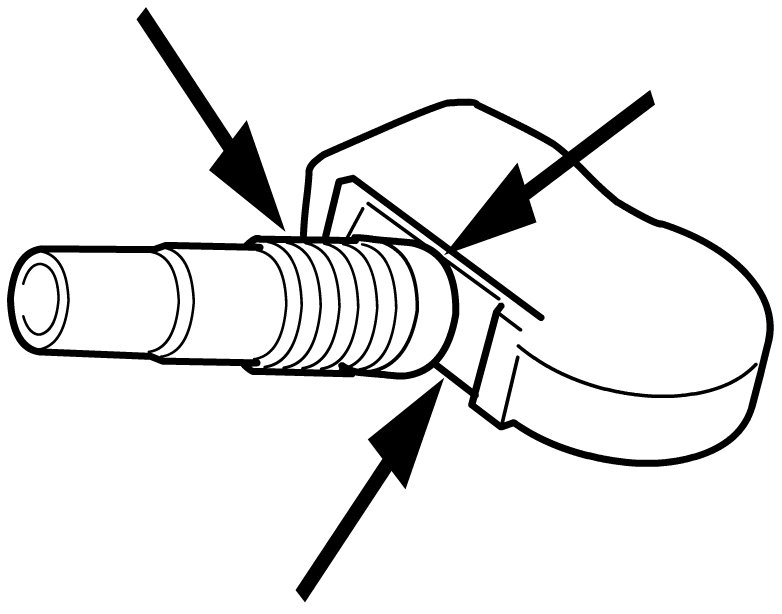

1) Visually inspect tire pressure sensor for damage. Replace tire pressure sensor if defective.





2) Using recommended tool ("VT55" made by ATEQ), activate tire pressure sensor.

Refer to instruction of recommended tool for the method of activating tire pressure sensor.
3) Check information from tire pressure sensor is indicated in recommended tool.

Repeat the activating process one more again if no indication.

Replace tire pressure sensor if no indication again.
