Lighting and Turn Signal Switch Removal and Installation

Lighting and Turn Signal Switch Removal and Installation

Removal

1) Remove steering column cover. Steering Wheel and Column Components
2) Disconnect lighting and turn signal switch connector.

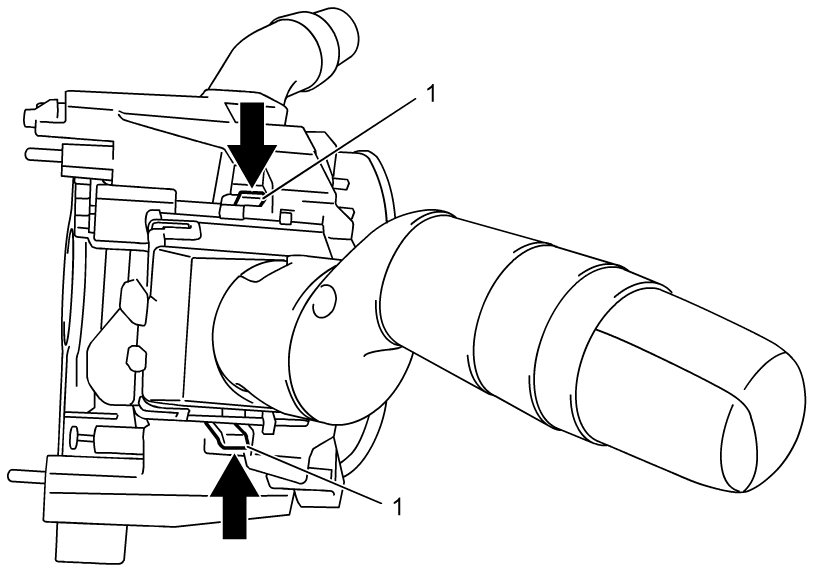

3) Remove lighting and turn signal switch from steering column while holding claws (1) pressed in directions of arrows.






Installation

Lighting and Turn Signal Switch Inspection

Reverse removal procedure.
