Lighting and Turn Signal Switch Inspection

Lighting and Turn Signal Switch Removal and Installation

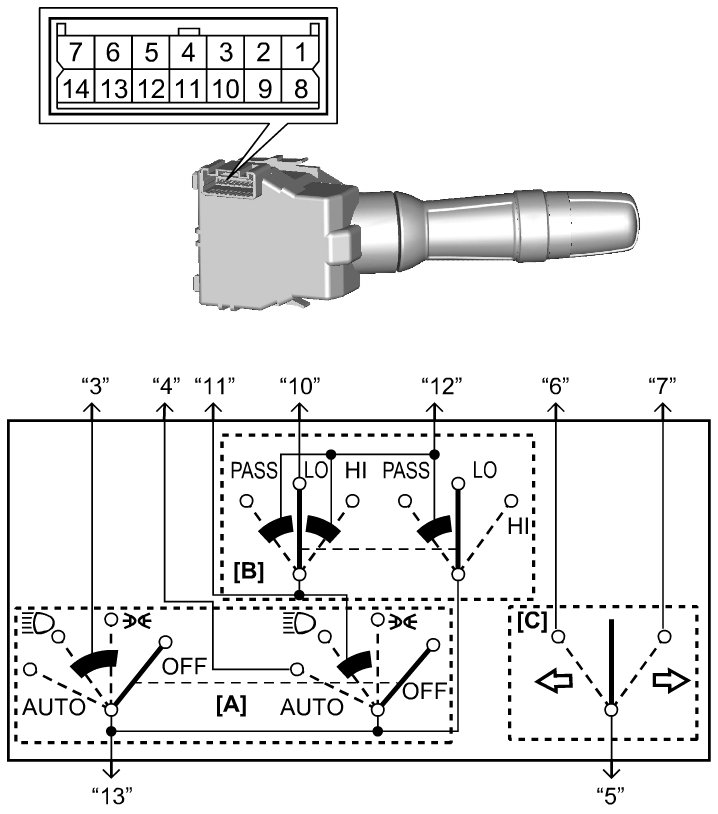

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.

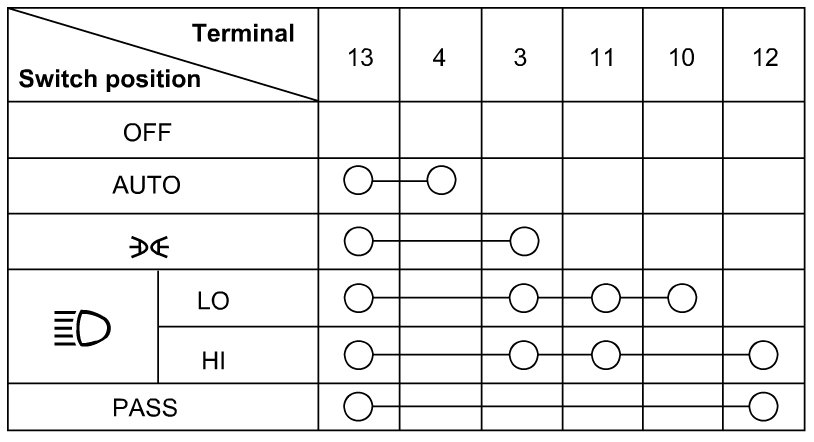

Dimmer / Passing switch and lighting switch continuity





NOTE:

Dimmer / Passing switch does not have dead point. (Both high and low beam lights light up simultaneously at transition point.)

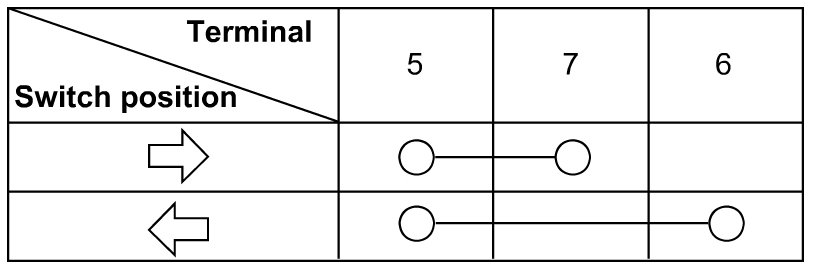

Turn signal switch continuity
