Trunk Lamp: Service and Repair

Trunk Light Removal and Installation

Removal

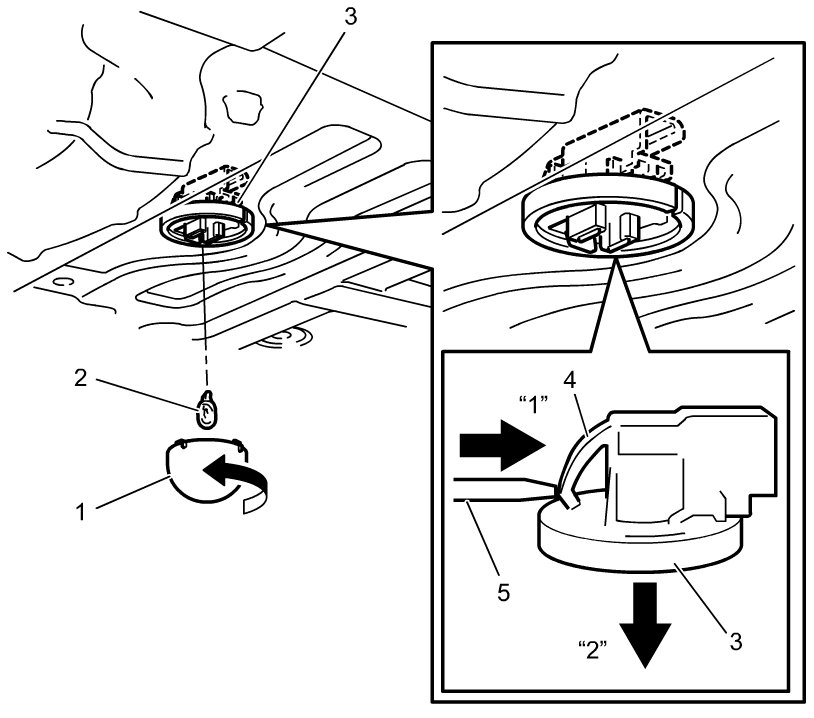

1) Remove trunk light lens (1) by turning it in direction of arrow and then remove bulb (2).
2) Remove partition trim. Service and Repair
3) Disconnect trunk light connector.
4) Remove trunk light socket (3) by pushing lock (4) in direction of arrow using flat-bladed screwdriver as shown and then pulling socket down.






Installation

Reverse removal procedure.
