Fog/Driving Lamp: Service and Repair

Fog Light Removal and Installation (If Equipped)

Removal

1) Remove front fog light bezel. Service and Repair
2) Remove fog light screws, and disconnect connector.

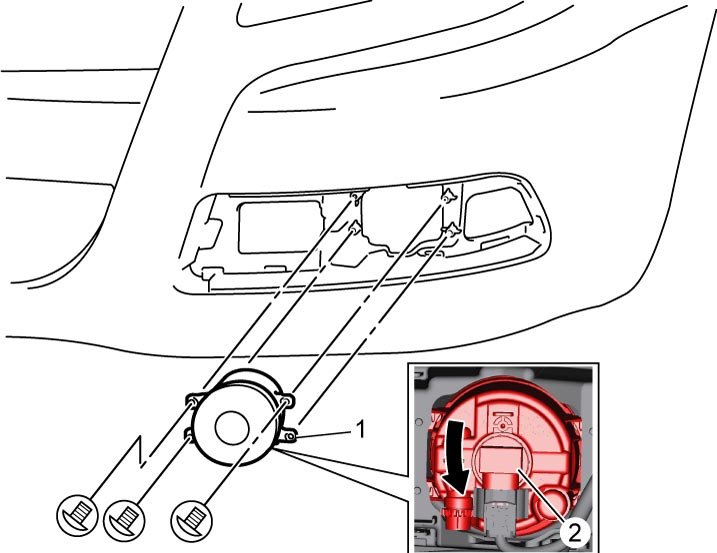

3) Remove fog light (1).
4) Turn socket (2) counterclockwise to remove bulb.






Installation

Reverse removal procedure for installation nothing the following.

- After installing, adjust aiming referring to Adjustments Fog Light Aiming Adjustment (If Equipped).
