Front Dome and Spot Light Removal and Installation




Front Dome and Spot Light Removal and Installation

Removal

1) Remove overhead console box. Overhead Console Box Removal and Installation

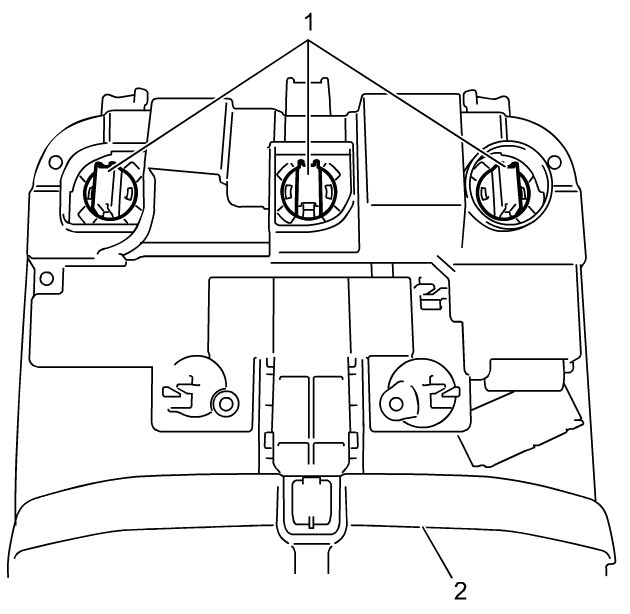

2) Remove bulb socket (1) from overhead console (2), and remove bulb.






Installation

Reverse removal procedure.
