Courtesy Light Removal and Installation




Courtesy Light Removal and Installation

Removal

1) Remove door trim. Front Door Components

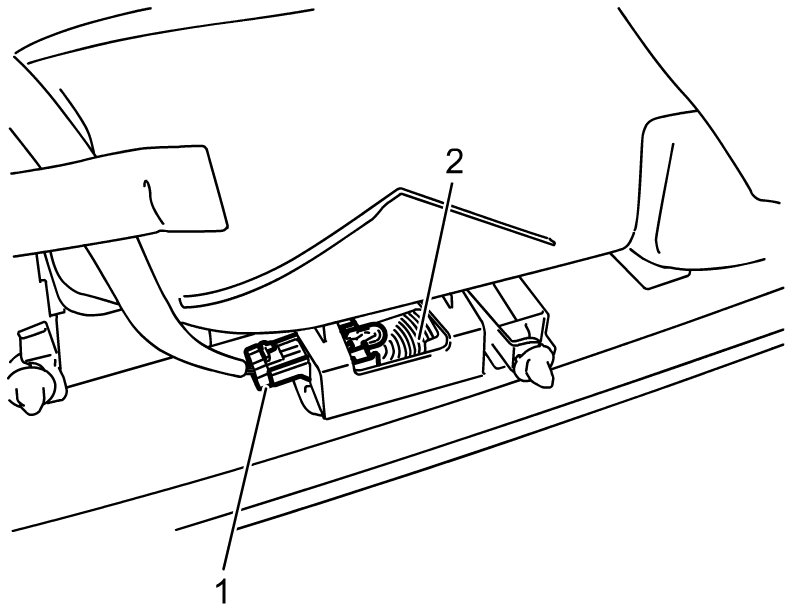

2) Disconnect courtesy light connector (1).
3) Remove courtesy light (2).






Installation

Reverse removal procedure.
