Brake Light Switch Inspection
Brake Light Switch
Inspection
Brake Light Switch
Removal and Installation

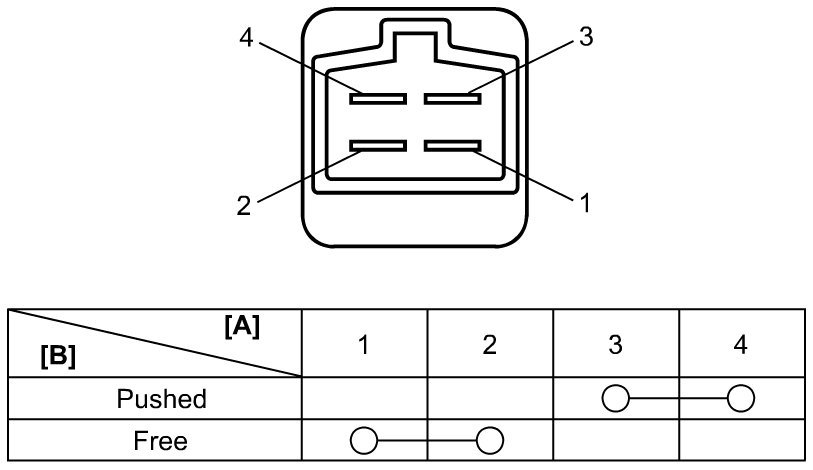

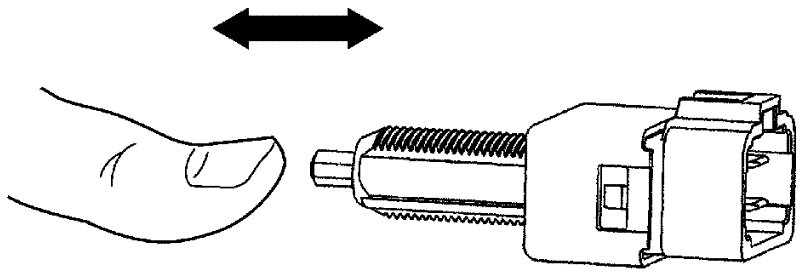

Check
brake light switch
for continuity between terminals at each switch position.
If check result is not as specified, replace switch.
