DTC Clearance

DTC Clearance

Using SUZUKI Scan Tool

1) Confirm that ignition mode of keyless push start system is in "OFF".
2) Connect SUZUKI scan tool to DLC (1).
Special Tool

(A): SUZUKI scan tool (SUZUKI-SDT)





3) Push engine switch to change ignition mode to "ON".
4) Erase DTC according to instructions displayed on SUZUKI scan tool. Refer to SUZUKI scan tool operator's manual for further details.
5) Perform DTC Check DTC Check
and confirm if normal DTC (NO CODES) is displayed.
6) After completing clearance, push engine switch to change ignition mode to "OFF" and disconnect SUZUKI scan tool from DLC.

Not Using SUZUKI Scan Tool

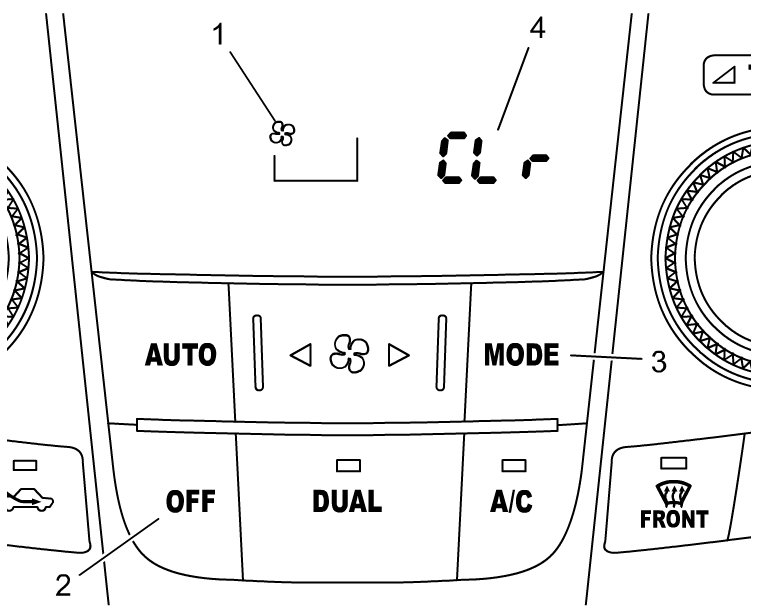

1) Display history DTC on VFD referring to "Not Using SUZUKI Scan Tool" under DTC Check DTC Check.
2) Make sure that DTC and fan mark (1) are displayed.
3) Push "OFF" switch (2) and "MODE" switch (3) simultaneously for several seconds.
4) After completing clearance, "CLr" (4) is displayed.





5) Check that no DTC is displayed on VFD. DTC Check
