Inside Air Temperature Sensor Removal and Installation

Inside Air Temperature Sensor Removal and Installation

Removal

1) Remove column hole cover from instrument panel. Service and Repair

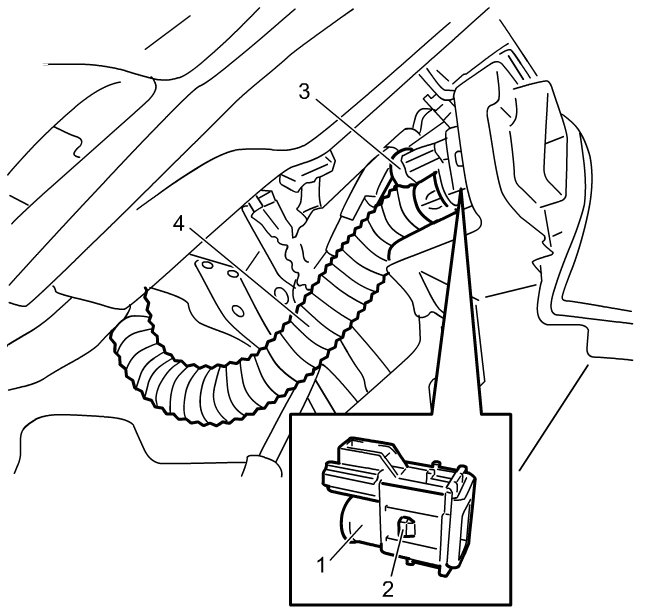

2) Disconnect connector (3) and aspirator hose (4) from inside air temperature sensor (1).
3) Release claws (2) and then remove inside air temperature sensor from instrument panel.






Installation

Reverse removal procedure.
