Blower Motor Controller Removal and Installation

Blower Motor Controller Removal and Installation

Removal

1) Remove passenger side instrument panel undercover. Removal and Replacement

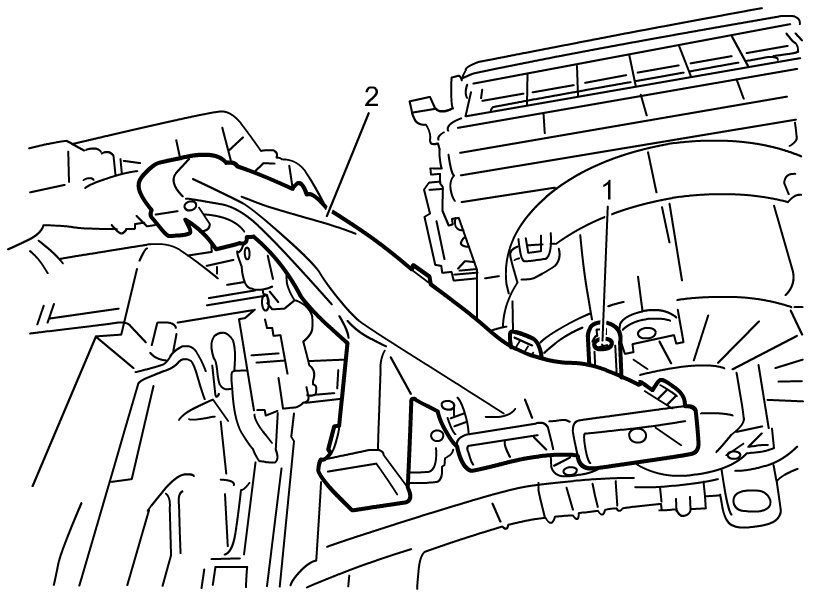

2) Remove a screw (1). Then remove passenger side foot duct (2) from HVAC unit.

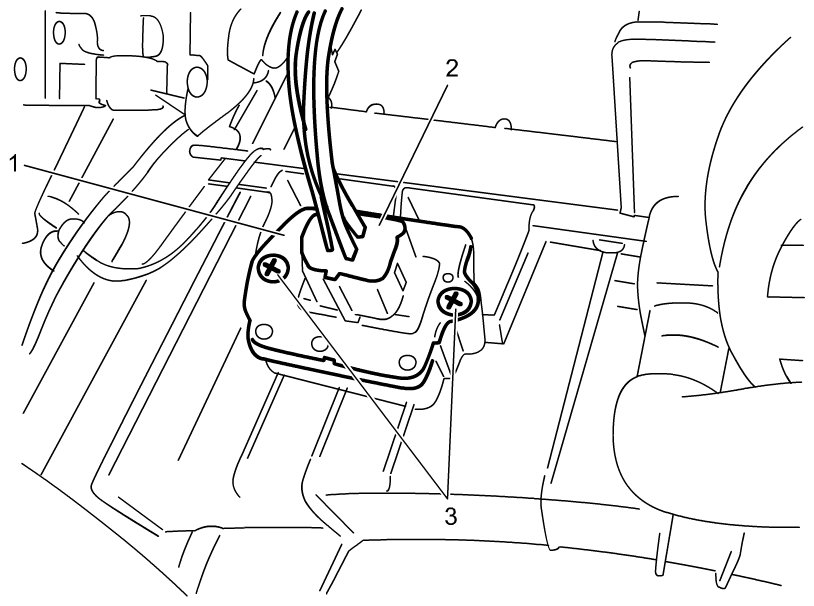

3) Disconnect connector (2) and remove screws (3).

Then remove blower motor controller (1) from HVAC unit.






Installation

Reverse removal procedure.
