Side Ventilation Louver Removal and Installation

Side Ventilation Louver Removal and Installation

Removal

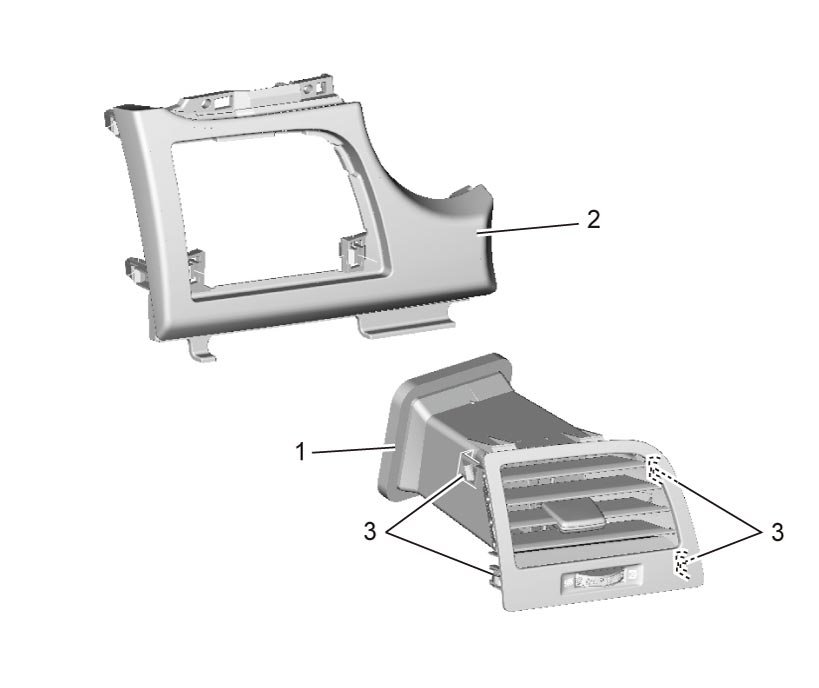

Driver side ventilation louver

1) Remove driver side ventilation louver (1) with driver side instrument panel outside garnish (2). Service and Repair
2) Release claws (3), and then remove driver side ventilation louver from driver side instrument panel outside garnish.

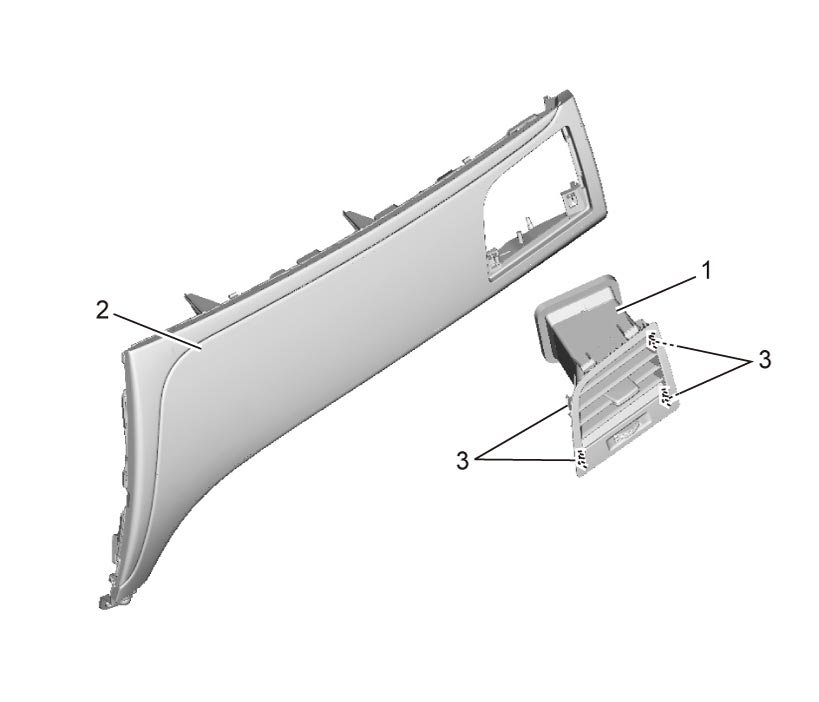

Passenger side ventilation louver

3) Remove passenger side ventilation louver (1) with passenger side instrument panel garnish (2). Overhaul
4) Release claws (3), and then remove passenger side ventilation louver from passenger side instrument panel garnish.






Installation

Reverse removal procedure.
