Rear Ventilation Louver Removal and Installation




Rear Ventilation Louver Removal and Installation

Removal

1) Remove center console box. Center Console Box Removal and Installation

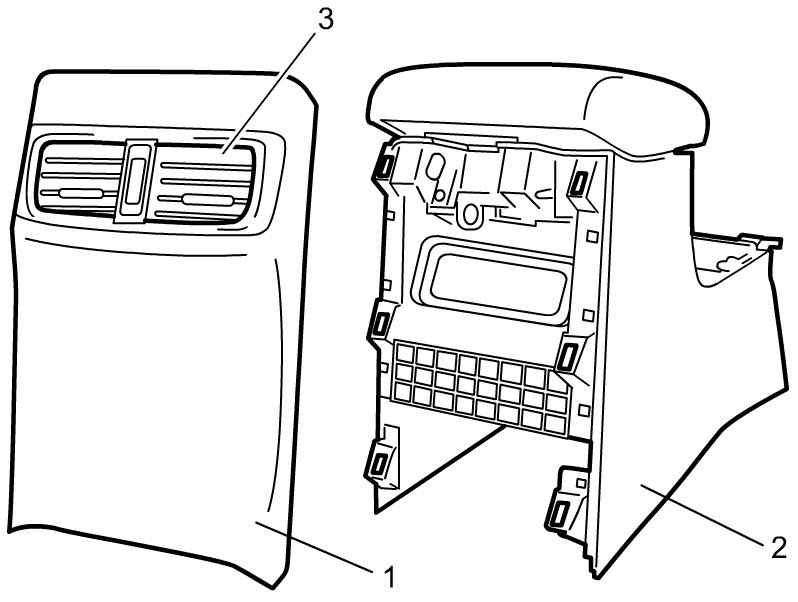

2) Release tabs, and then remove rear ventilation louver (3) with rear end panel (1) from center console box assembly (2).






Installation

Reverse removal procedure.
