Rear Duct Removal and Installation




Rear Duct Removal and Installation

Removal

1) Remove center console box. Center Console Box Removal and Installation
2) Remove front seats. Removal and Installation
3) Take over floor carpet to the position that rear ducts are totally exposed.

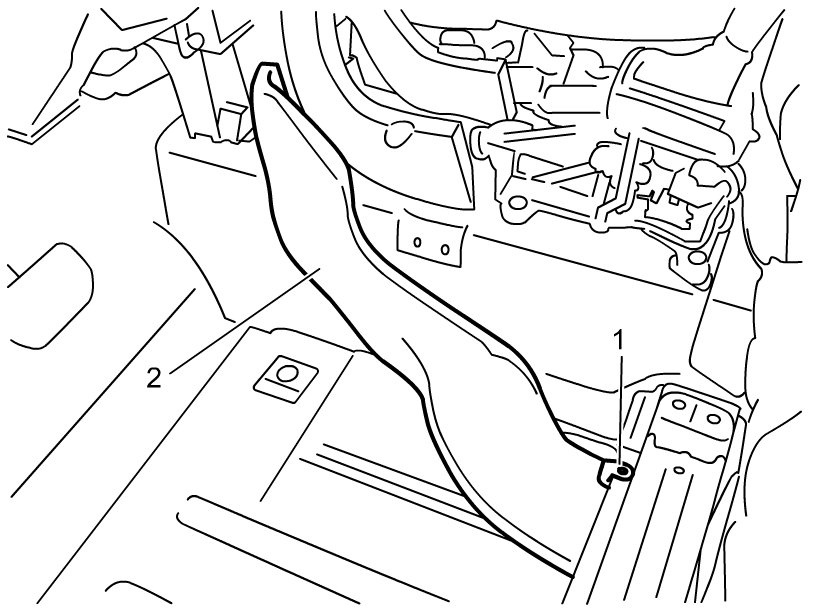

4) Remove rear ducts (2) by removing clips (1).






Installation

Reverse removal procedure.
