Timing Chain Cover Inspection




Timing Chain Cover Inspection

Timing Chain Cover Removal and Installation

Oil Seal

Check oil seal lip for any damage. Replace oil seal if any abnormalities are found.

Timing Chain Cover

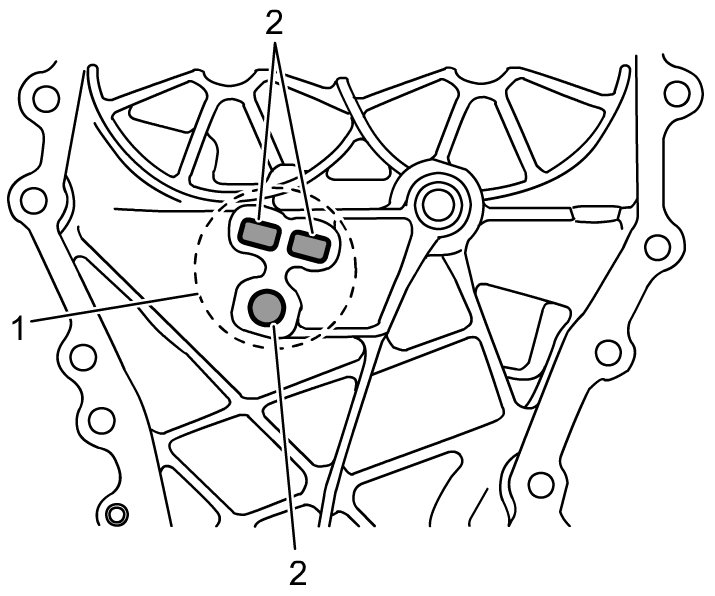

Inspect oil passage (1) for driving CMP actuator and strainer (2).

Clean passage and strainer if clog or foreign matter exists.
