Cylinder Block Heater Inspection (If Equipped)

Cylinder Block Heater Inspection (If Equipped)

Cylinder Head Cover Removal and Installation

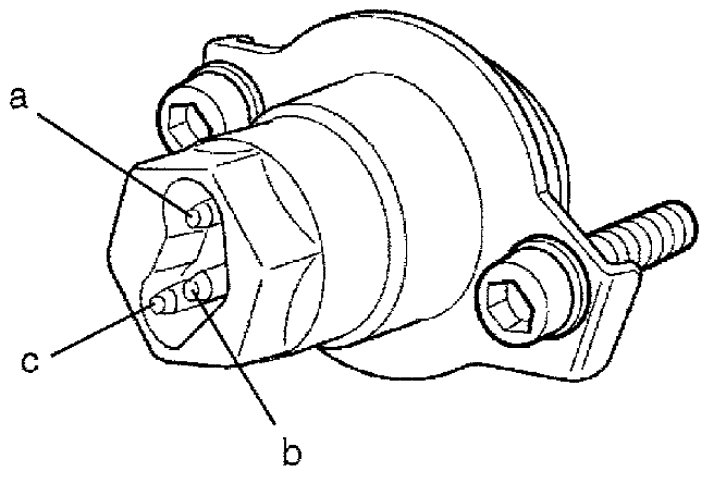

- Check continuity between terminals "a" and "c".
Replace cylinder block heater. If there is no continuity. Cylinder Block Heater Removal and Installation (If Equipped)
- Check that there is no continuity between terminal "a" and "b".
Replace cylinder block heater. If there is continuity. Cylinder Block Heater Removal and Installation (If Equipped)
- Check continuity between terminal "b" and cylinder block heater body.
Replace cylinder block heater. If there is no continuity. Cylinder Block Heater Removal and Installation (If Equipped)
