Overhaul

Radiator Cooling Fan Disassembly and Reassembly

Radiator Cooling Fan Assembly Removal and Installation

Disassembly

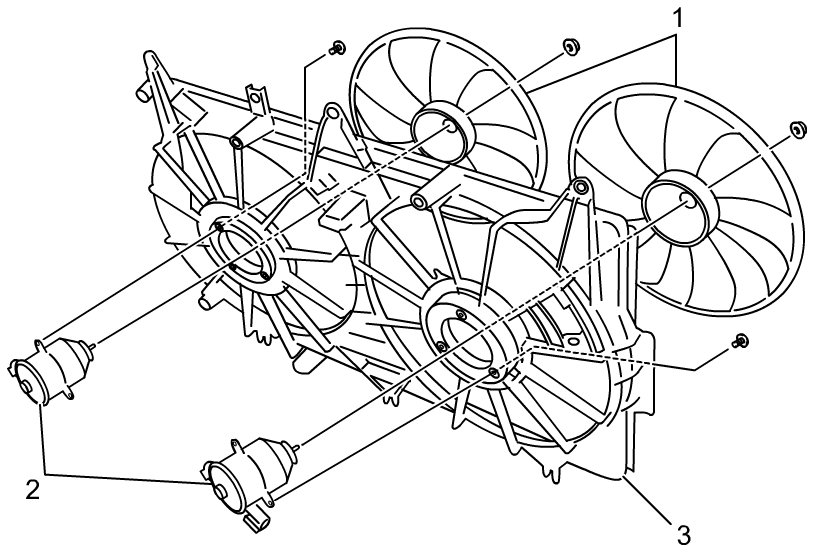

1) Remove fan (1) from cooling fan motor (2).
2) Remove fan motor (2) from cooling fan shroud (3).






Reassembly

Reverse disassembly procedure noting the following points:

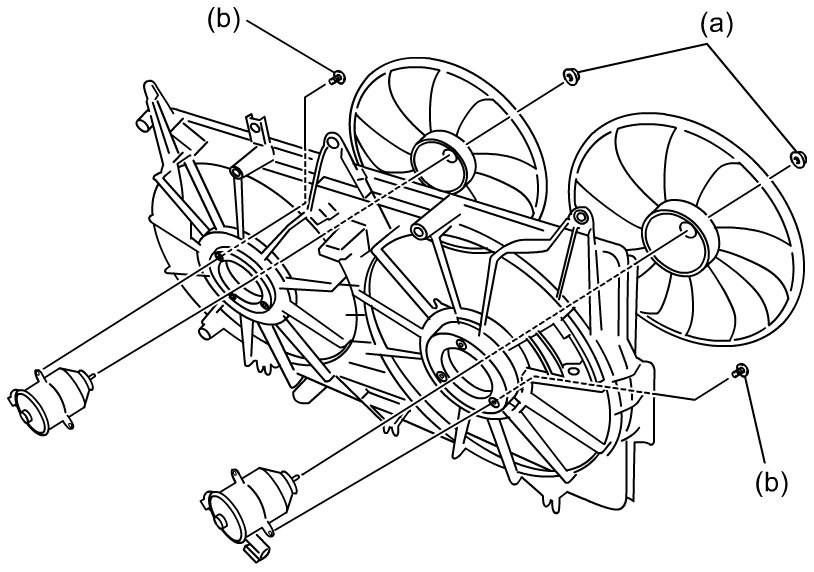

- Tighten fan nuts and radiator cooling fan motor bolts to specified torque.

Tightening torque
Fan nut (a): 6.0 Nm (0.61 kgf-m, 4.5 lbf-ft)
Radiator cooling fan motor bolt (b): 3.0 Nm (0.31 kgf-m, 2.5 lbf-ft)
