Heating and Air Conditioning

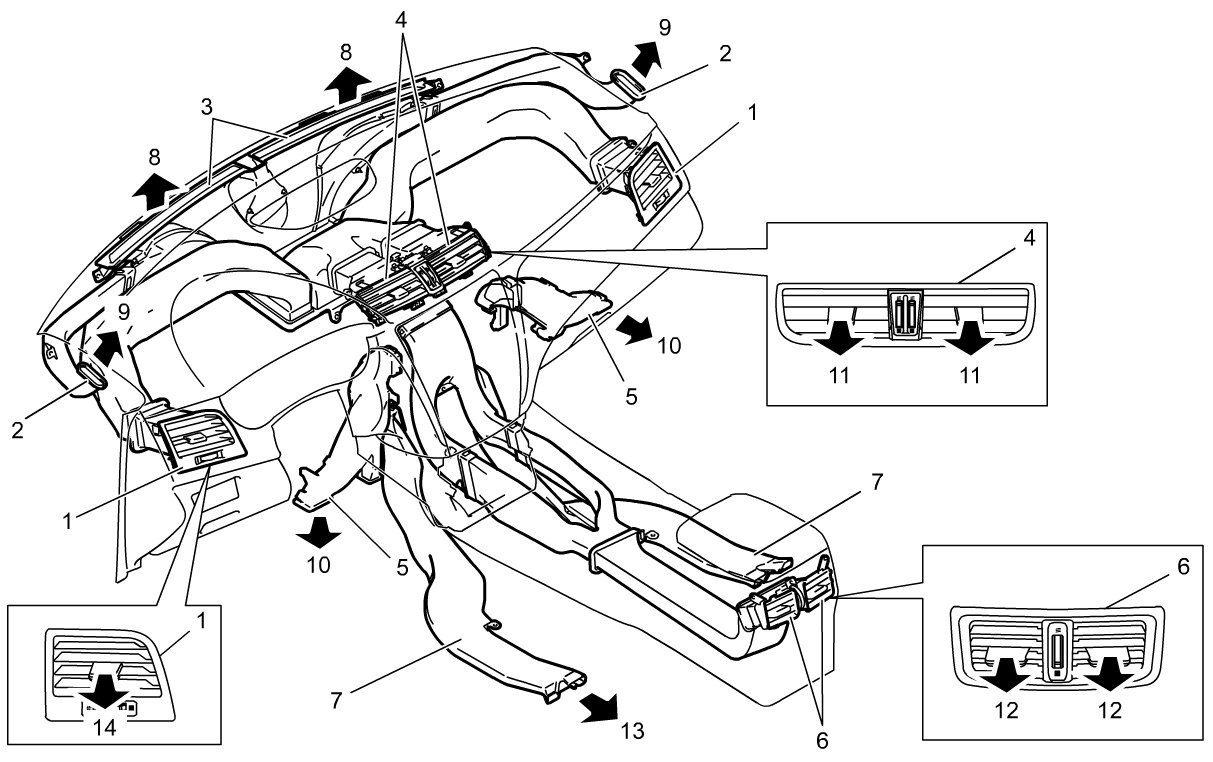

Ventilation Air Flow Diagram
Mode Position and Air Distribution

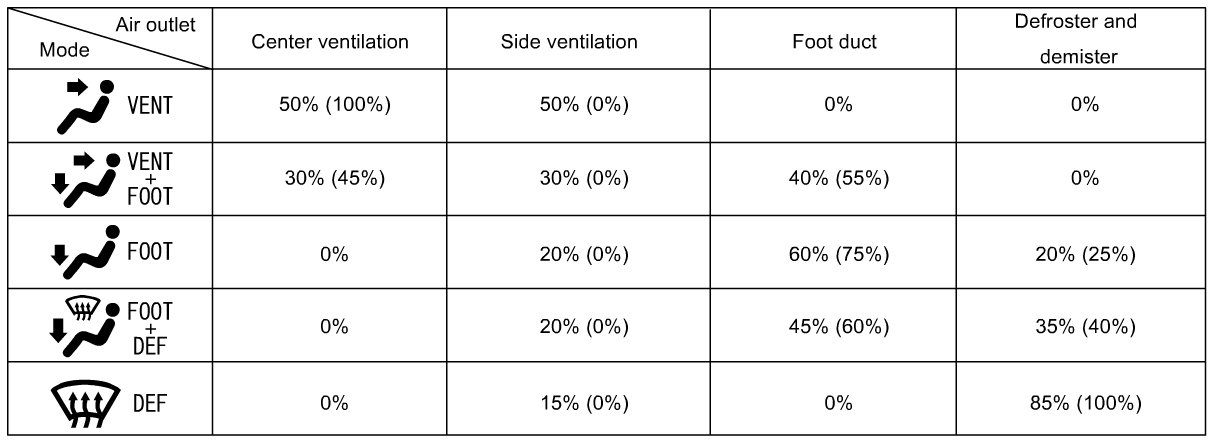

Front side air distribution
NOTE:
Figure in parentheses shows air flow percentage when both side ventilations are closed.

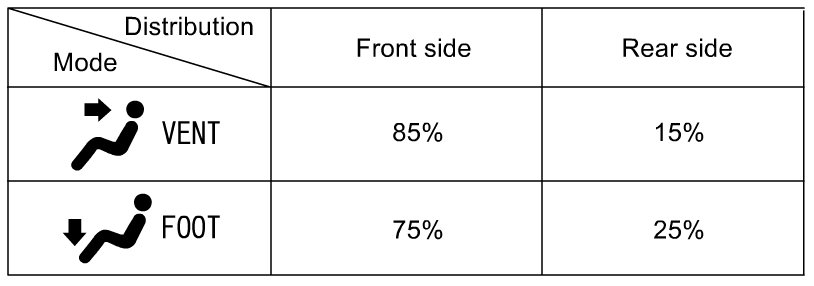

Distribution from front side to rear side
