Audio System Circuit Diagram
Audio System Circuit Diagram

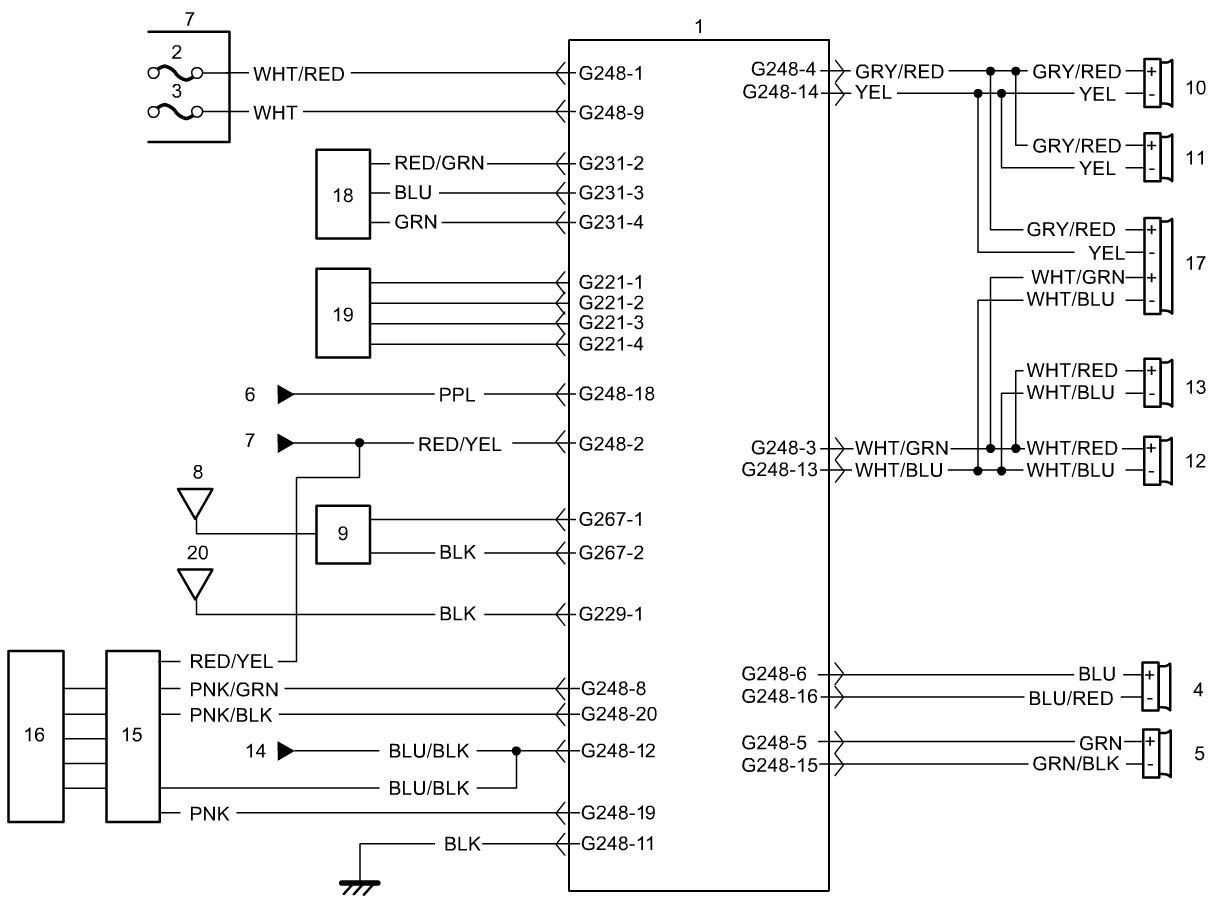

Without Audio Amplifier

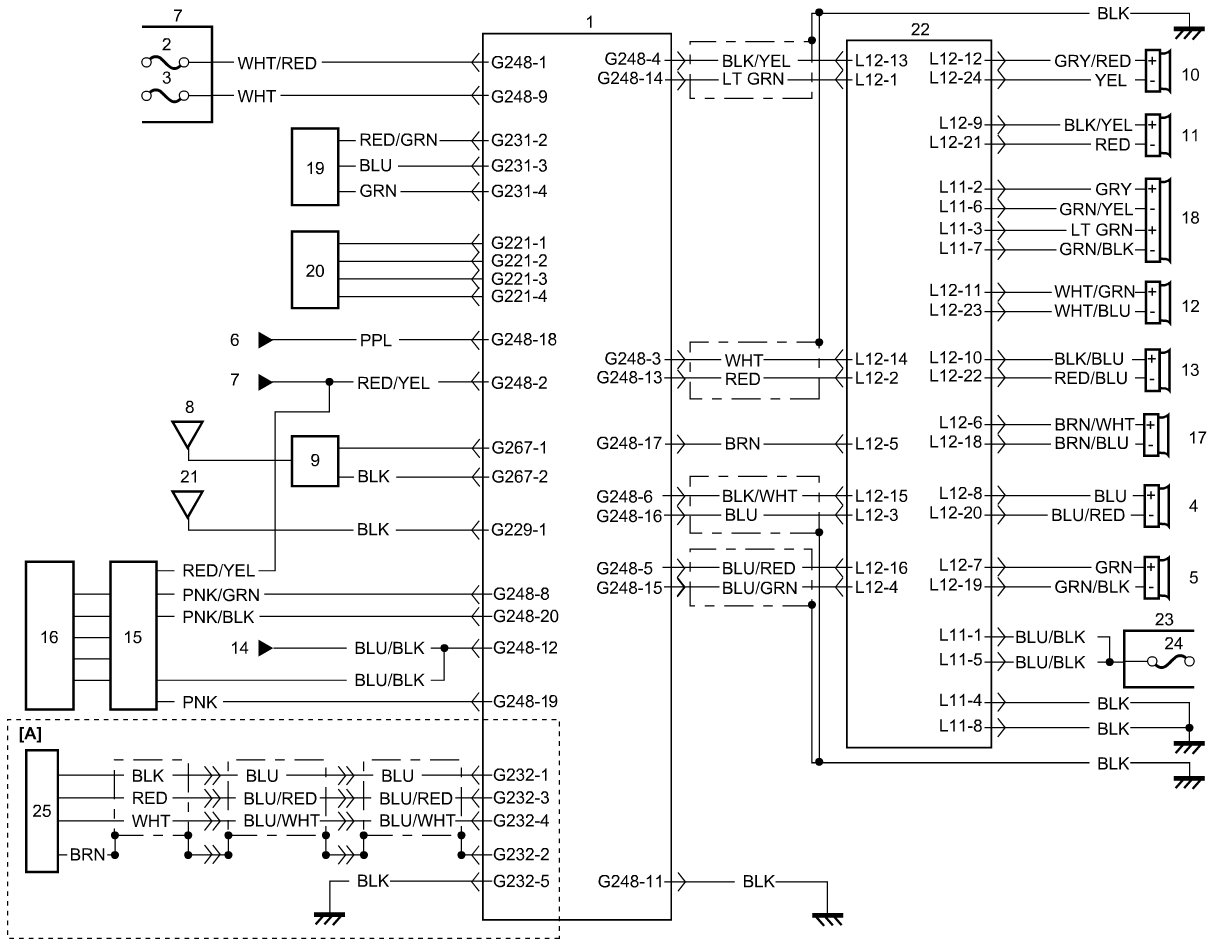

With Audio Amplifier
