Suzuki
>>
2012
>>
Kizashi AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
>>
B-3 Rear Defogger Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

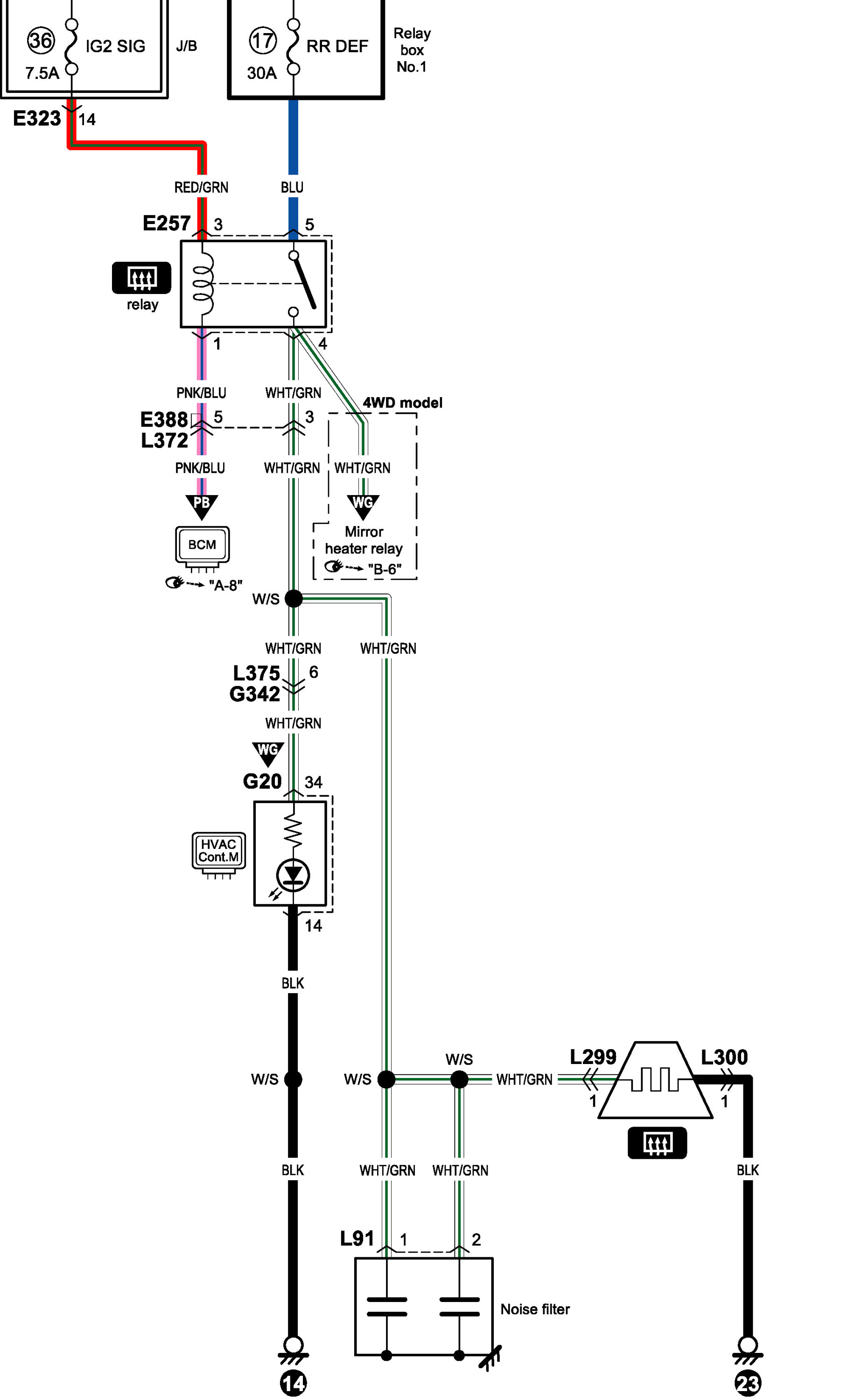

B-3 Rear Defogger Circuit Diagram
B-3 Rear Defogger Circuit Diagram
