Parking Brake Warning Switch: Testing and Inspection

Parking Brake Switch On-Vehicle Inspection

1) Remove floor console box. Center Console Box Removal and Installation
2) Disconnect parking brake switch connector from parking brake switch on parking brake lever.

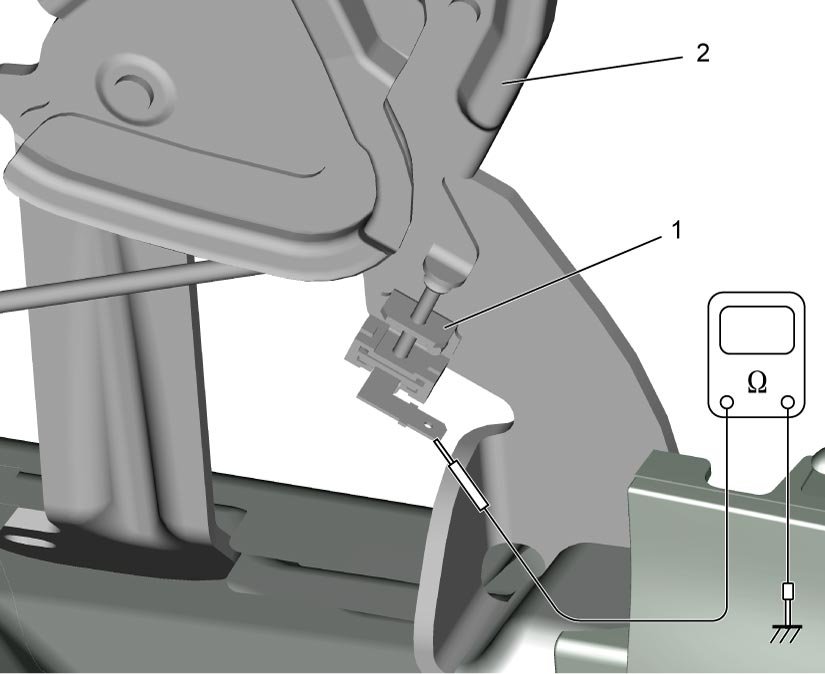

3) Check parking brake switch for continuity between parking brake switch terminal and vehicle body. If faulty, replace parking brake switch.

Parking brake switch specification
Parking brake released: No continuity
Parking brake lever pulled up: Continuity exists
