Seat Heater Switch Inspection (If Equipped)

Seat Heater Switch Inspection (If Equipped)

Seat Heater Switch Removal and Installation (If Equipped)

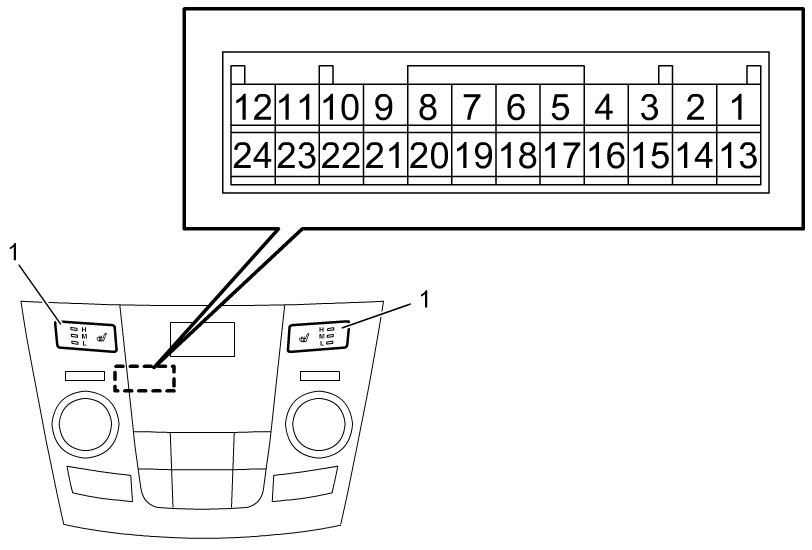

With seat heater switch (1) pressed, measure seat heater switch resistance at auto A/C panel connector between the following terminals: "12" and "21" for driver seat; "12" and "16" for passenger seat.

If check result is not as specified, replace auto A/C panel.

Seat heater switch standard resistance
: 6.6 - 8 M ohms at 20 °C (68 °F)
