Rear View Mirror (with Auto Dimming) Inspection

Rear View Mirror (with Auto Dimming) Inspection

Rear View Mirror Removal and Installation

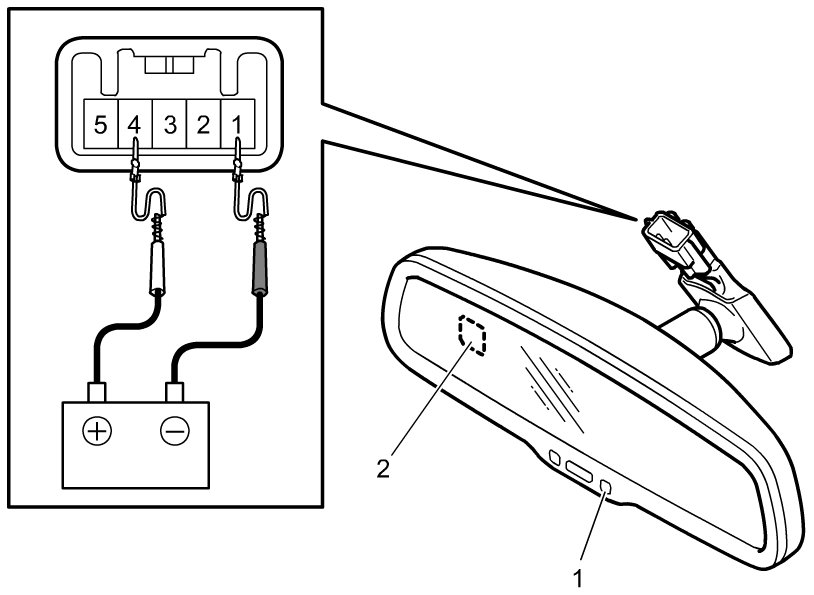

1) Connect positive and negative battery terminals to terminals "4" and "1" of rear view mirror connector respectively.
2) Cover the front light sensor (2) and apply light to the rear light sensor (1) to check if color of rear view mirror changes.





3) Under the same condition as Step 2), connect positive terminal of battery to terminal "5" and confirm if color of rear view mirror returns to the initial color.
