Outside Warning Buzzer Removal and Installation




Outside Warning Buzzer Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Remove left front fender lining. Front Fender Components

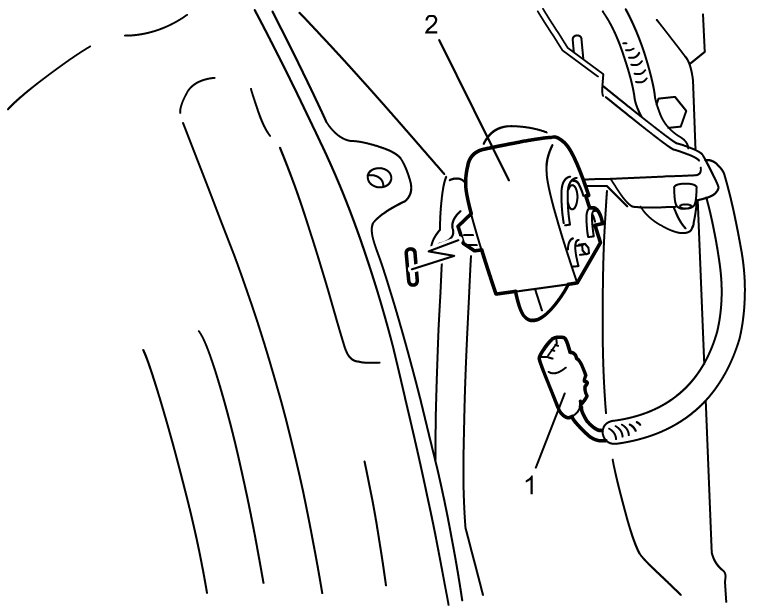

3) Disconnect connector (1), and then remove outside warning buzzer (2).






Installation

Reverse removal procedure.
