Fuel Door: Service and Repair

Fuel Lid Removal and Installation

Removal

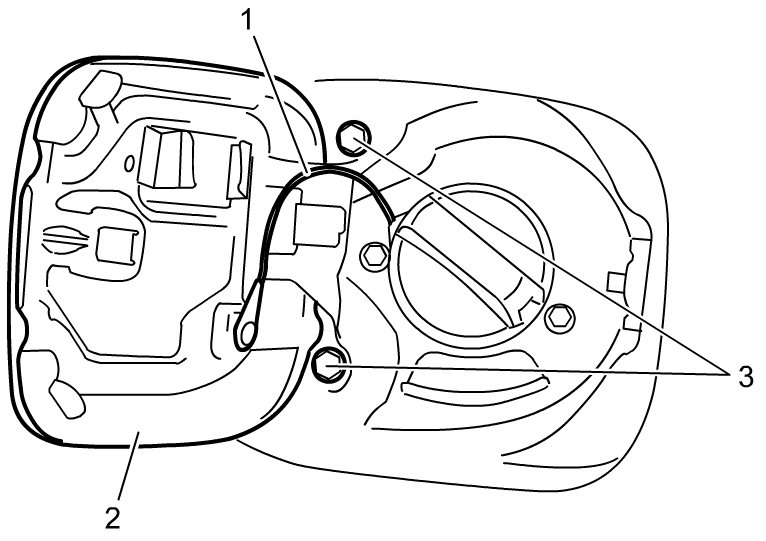

1) Remove fuel cap tether (1) from fuel lid (2).
2) Remove fuel lid bolts (3) and remove fuel lid (2).






Installation

Reverse removal procedure noting the following point.

- Tighten fuel lid bolts to specified torque.

Tightening torque
Fuel lid bolt 10 Nm (1.0 kgf-m, 7.5 lbf-ft)
