Symptom Related Diagnostic Procedures

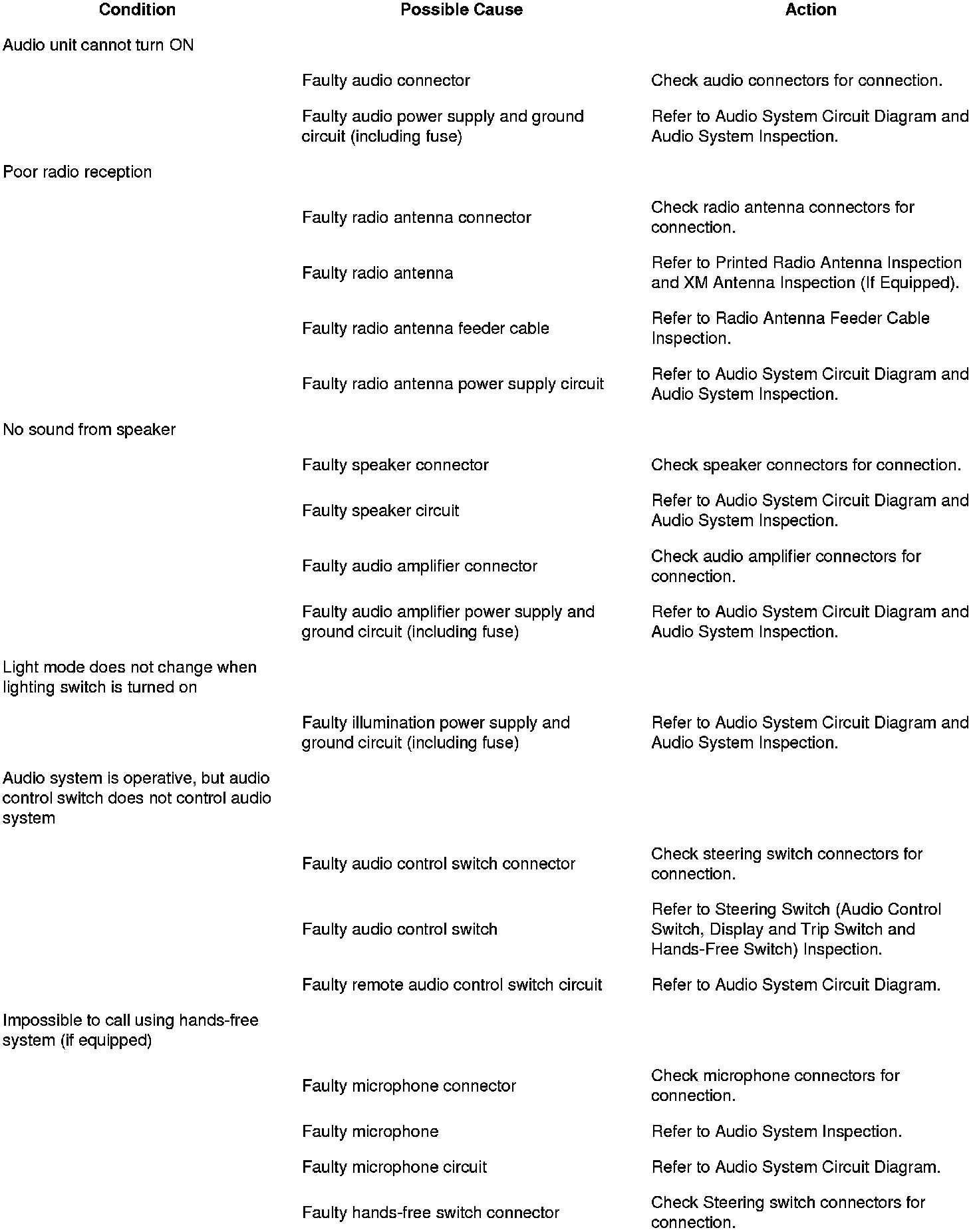

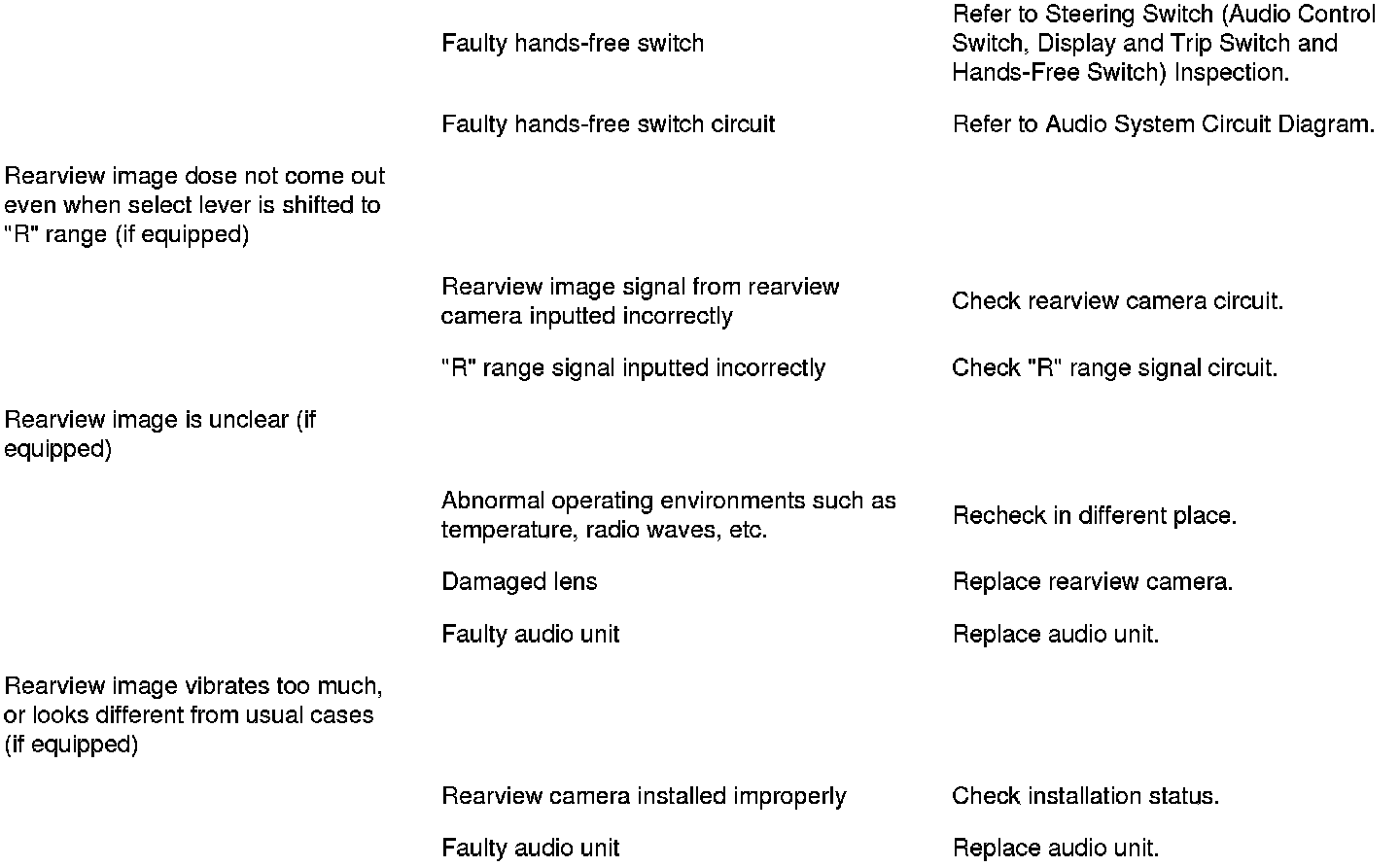

Audio System Symptom Diagnosis

Before performing the following troubleshooting, check if the symptom is not caused by incorrect handling while referring to owner's manual.

If the cause cannot be identified by the following troubleshooting, replace audio unit with a known-good one. If the symptom is cleared, audio unit is the cause.
