Radio/Stereo: Service and Repair




Audio Unit Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Remove HVAC control module. HVAC Control Module Removal and Installation

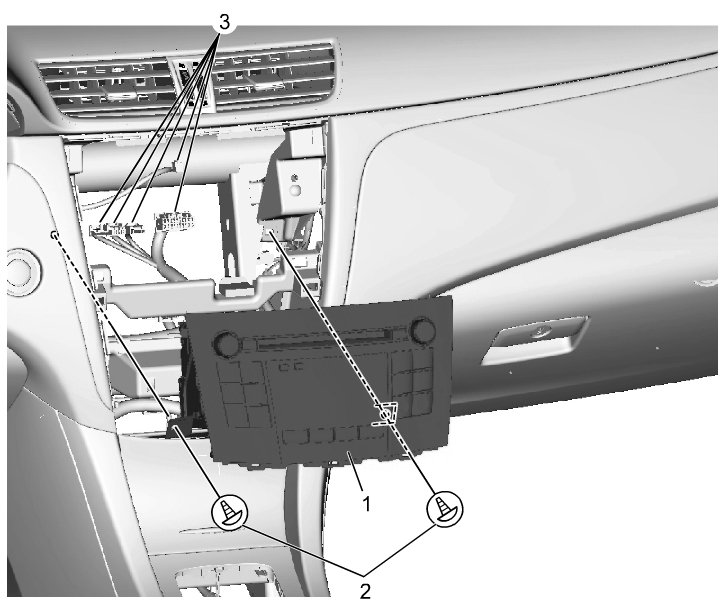

3) Remove audio unit (1) from instrument panel by removing 2 mounting screws (2).
4) Disconnect audio unit connectors (3).






Installation

Reverse removal procedure.
