Amplifier: Service and Repair

Audio Amplifier Removal and Installation (If Equipped)

Removal

1) Disconnect negative (-) cable at battery.
2) Remove trunk side trim. Service and Repair

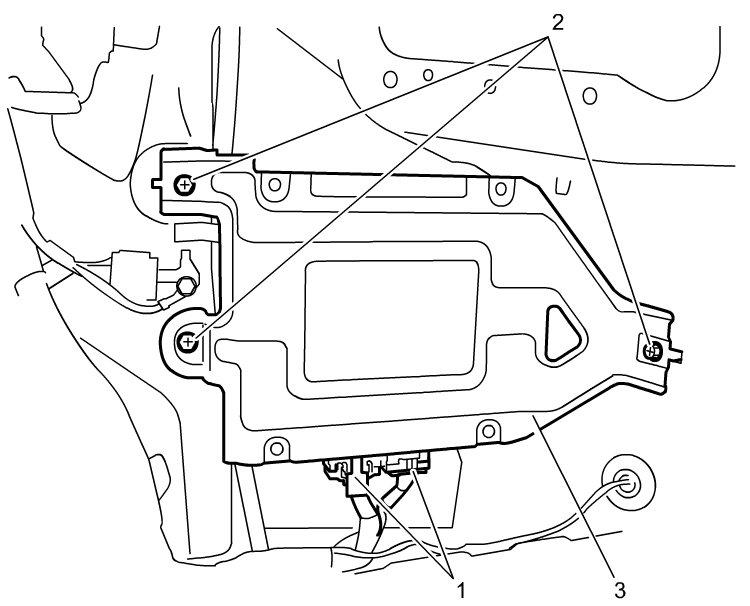

3) Disconnect audio amplifier connectors (1).
4) Remove 3 audio amplifier bolts (2).
5) Remove audio amplifier (3) from trunk.






Installation

Reverse removal procedure.
