USB Socket Inspection




USB Socket Inspection

USB Socket Removal and Installation

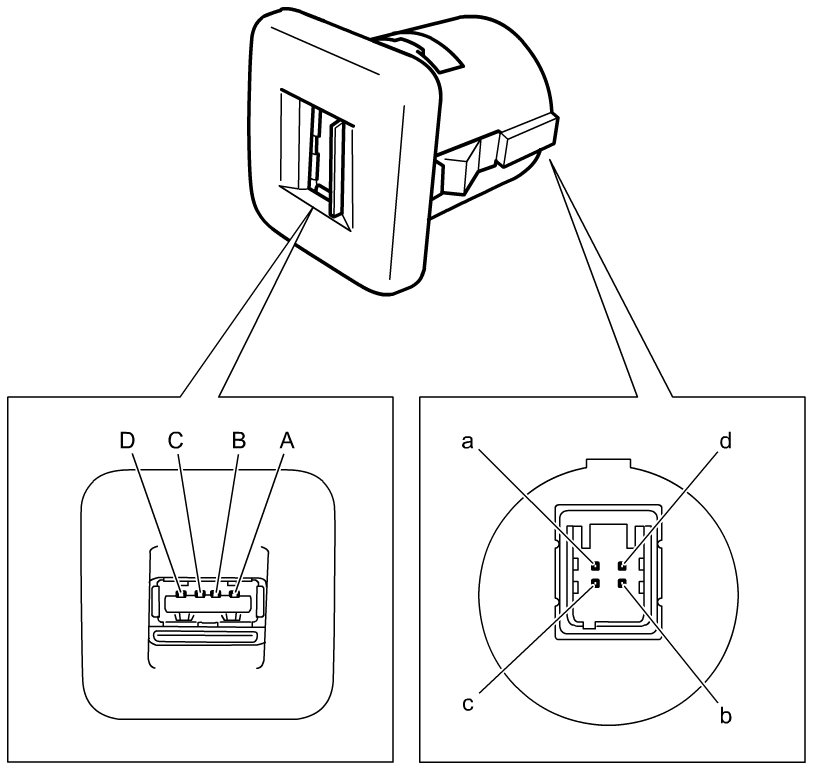

Check continuity between each terminal of socket side and harness side of USB socket as shown in figure.

If check result is not as specified, replace USB socket.

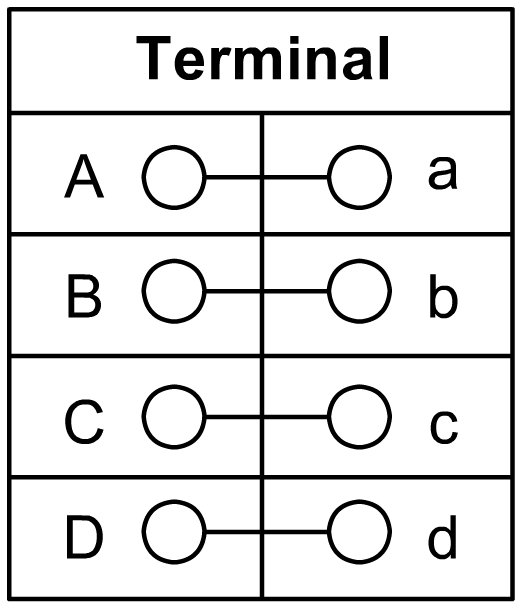

USB socket continuity
