Auxiliary Input / Output Jack: Service and Repair

USB Socket Removal and Installation

Removal

1) Remove instrument panel center lower box. Service and Repair

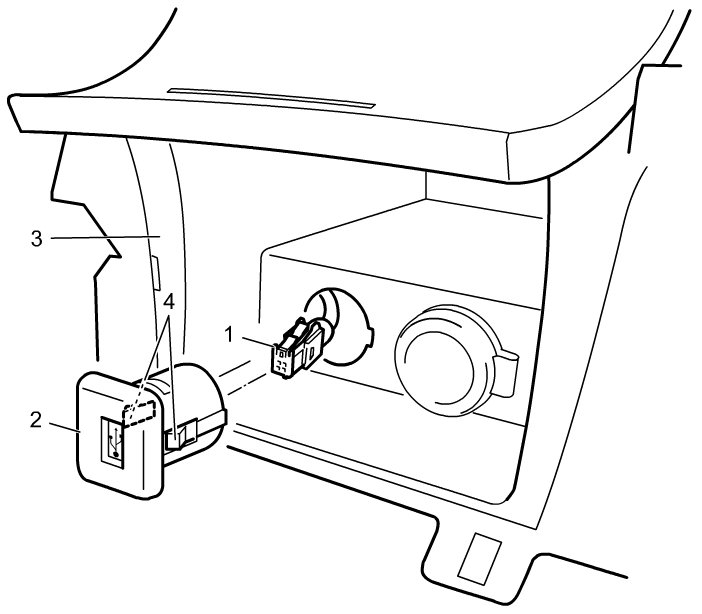

2) Disconnect USB socket connector (1), and then remove USB socket (2) from instrument panel center lower box (3) while releasing the locks (4).






Installation

USB Socket Inspection

Reverse removal procedure.
