B1685

DTC B1685 / B1686 / B1687 / B1688 / B1689 / B1695 / B1696

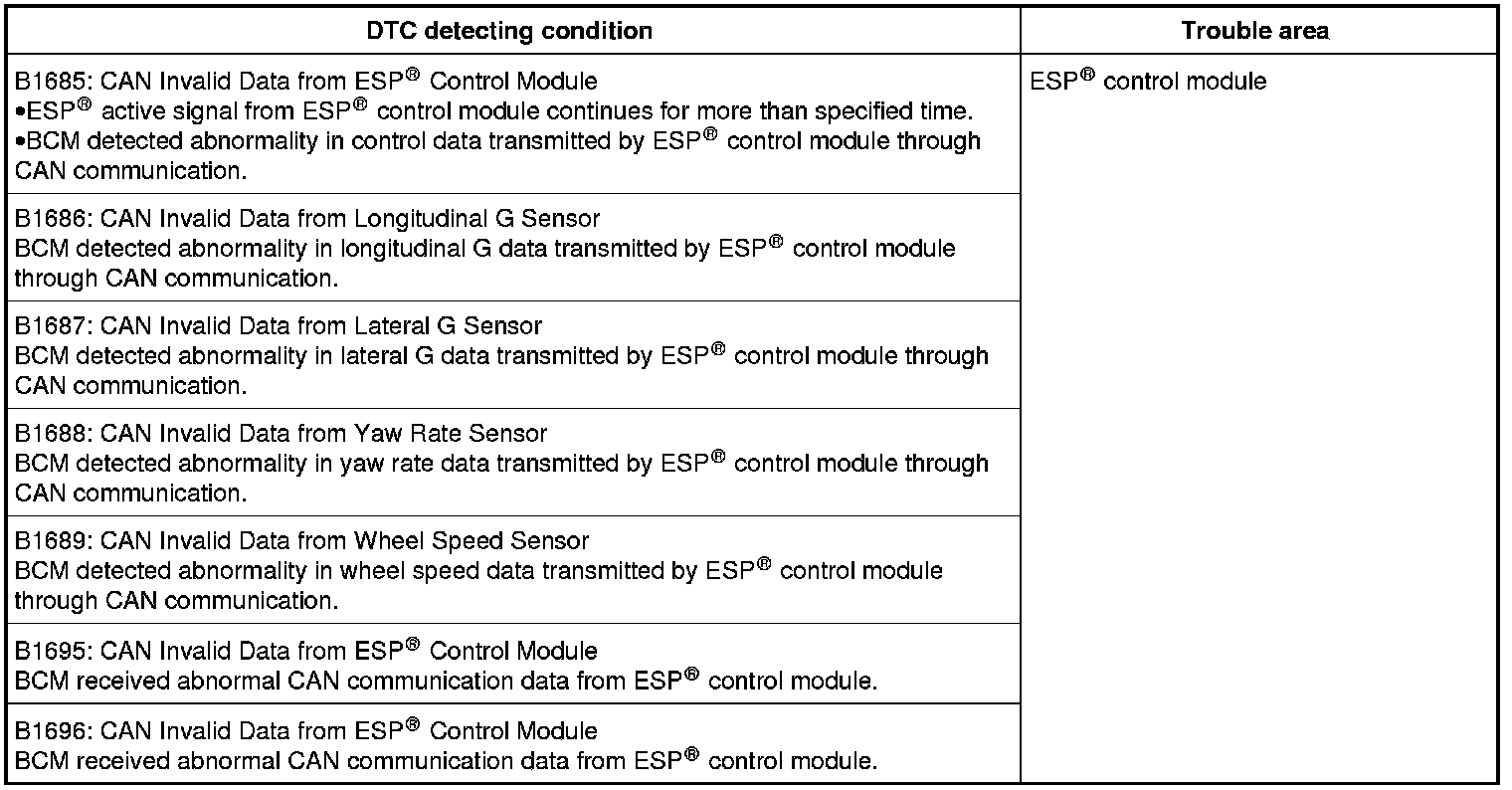

DTC Detecting Condition and Trouble Area






DTC Troubleshooting

1. DTC check

Check DTC in ESP(R) control module. Electronic Stability Program

Is there any DTC(s) detected?
YES -
Go to troubleshooting for applicable DTC.
NO -
Substitute a known-good ESP(R) control module and recheck DTC.
