B1126

DTC B1126

DTC Detecting Condition and Trouble Area

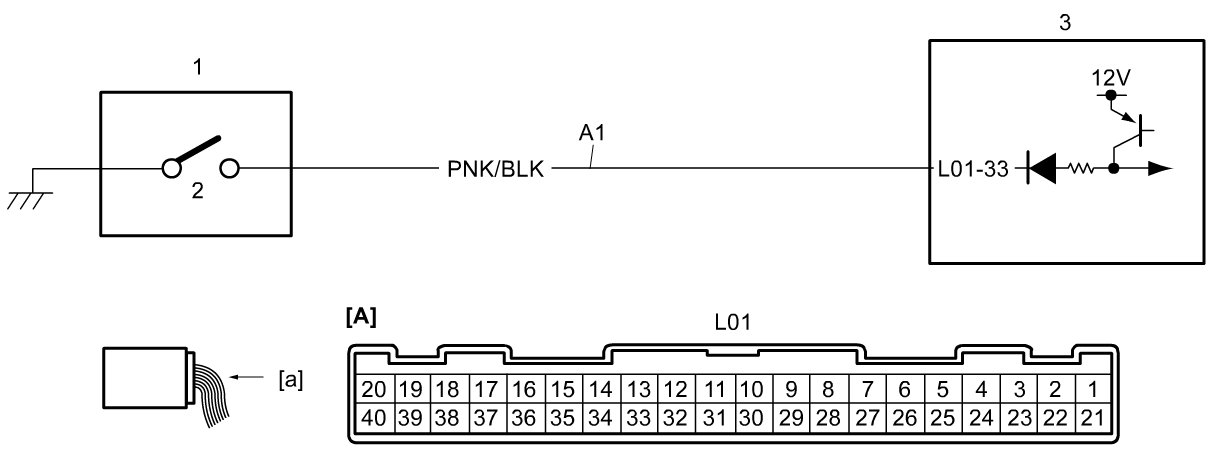

Circuit Diagram










DTC Confirmation Procedure

1) Drive vehicle at 10 km/h (6 mph) or more for 1 minute.

DTC Troubleshooting

1. P position switch signal circuit check

Confirm that ignition mode of keyless push start system is in "OFF".
Disconnect select lever and "L01" connectors.
Check for proper terminal connection to select lever and "L01" connectors.
If connections are OK, check the following points.
- Resistance of "A1" circuit: less than 3 ohms
- Resistance between "A1" circuit and ground: infinity
- Resistance between "A1" circuit terminal and each terminal at select lever connector: infinity

Are they in good condition?
YES -
Go to Step 2.
NO -
Repair or replace defective wire harness.

2. P position switch check

Check P position switch. Testing and Inspection

Is it in good condition?
YES -
Replace keyless start control module and recheck DTC. Service and Repair
NO -
Replace select lever. Select Lever Assembly Removal and Installation
