Clutch Pedal Position (CPP) Switch (for 4WD Control Module) Inspection and Adjustment: Inspection
WARNING: This page is about a different variant/trim than selected.

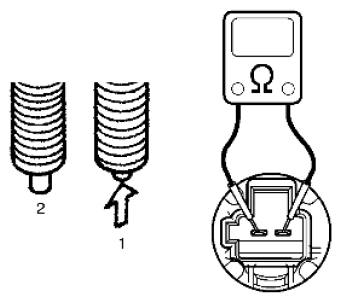

Check for resistance between terminals under each condition below. If check result is not satisfactory, replace.
Clutch pedal position (CPP) switch (for 4WD control module) resistance
When switch shaft is pushed (1): Continuity
When switch shaft is free (2): No continuity
