D-1 Headlight System Circuit Diagram (with Projector Light)

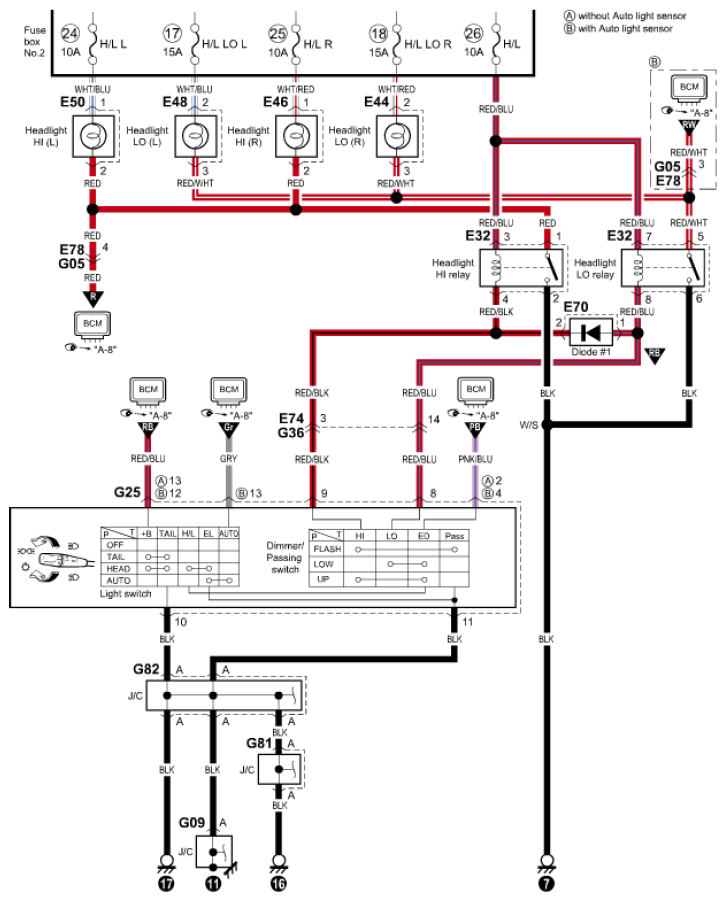

Fig 1: D-1 Headlight System - Circuit Diagram (With Projector Light)
G08899403Courtesy of SUZUKI OF AMERICA CORP.
