Output Shaft Disassembly and Reassembly: Reassembly

Reference: OUTPUT SHAFT INSPECTION

1. Clean all components thoroughly, inspect them for any abnormality and replace with new ones as necessary.
2. Put front bearing (1) onto output shaft facing groove (4) side to output shaft gear (2) and drive in output shaft front bearing, output shaft gear and output shaft rear bearing (3) all together using special tool and hydraulic press.

   Special Tool

   (A): 09940-51710

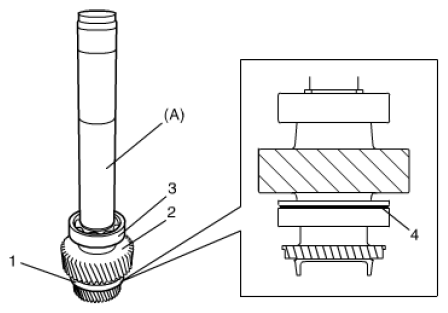

   Fig 1: Installing Output Shaft Front Bearing Using Special Tool

   Courtesy of SUZUKI OF AMERICA CORP.
3. Install new output shaft rear snap ring.
