Output Shaft Disassembly and Reassembly: Disassembly
- Remove output shaft rear snap ring.

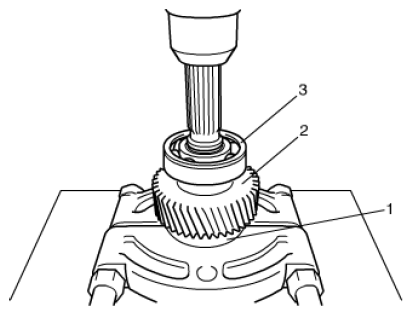

- Apply bearing puller to output shaft front bearing (1), and drive out output shaft front bearing, output shaft gear (2) and output shaft rear bearing (3) all at once from output shaft using hydraulic press.
