Manual Transmission Front Case Disassembly and Reassembly: Reassembly

Set new oil seal to front case with its spring side facing rear case side.
Install oil seal until it becomes flush with case surface using special tool and hammer and apply grease to oil seal lip.
Special Tool

(A): 09940-51710

: Grease 99000-25011 (SUZUKI Super Grease A)

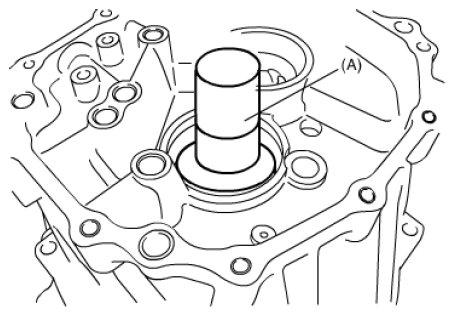

Fig 1: Installing Oil Seal Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Install new pump seal to front case using special tool and hammer.
Special Tool

(A): 09913-75810

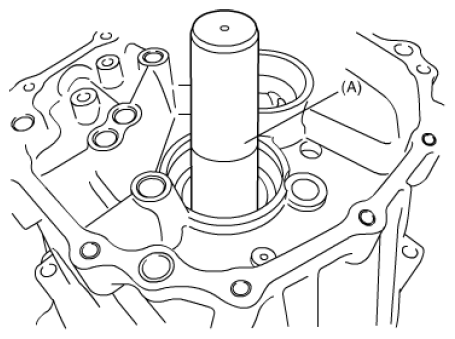

Fig 2: Installing Pump Seal To Front Case Using Special Tool And Hammer
Courtesy of SUZUKI OF AMERICA CORP.
