Manual Transmission Front Case Disassembly and Reassembly: Disassembly

Remove pump seal (1) and oil seal (2) from front case using special tools.

Special Tool

(A): 09941-64511

(B): 09930-30104

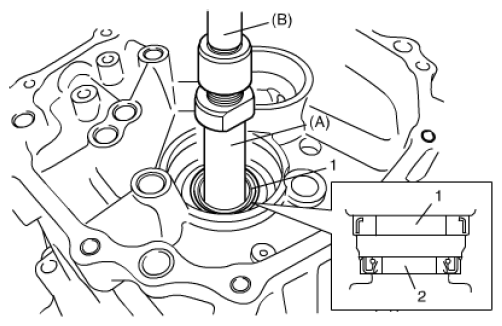

Fig 1: Removing Pump Seal And Oil Seal From Front Case Using Special Tools

Courtesy of SUZUKI OF AMERICA CORP.
