Manual Transmission Adapter Case Disassembly and Reassembly: Reassembly

Set new oil seal to adapter case with its spring side facing rear case side.
Install oil seal until it becomes flush with case surface using special tool and hammer and apply grease to oil seal lip.
Special Tool

(A): 09913-85210

: Grease 99000-25011 (SUZUKI Super Grease A)

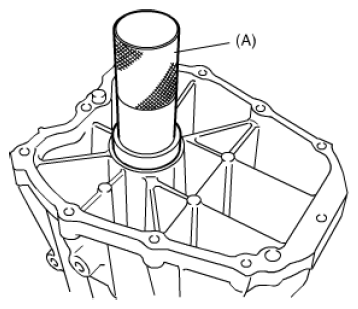

Fig 1: Installing Oil Seal To Adapter Case Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
