Gear Shift Shaft and Fork Components

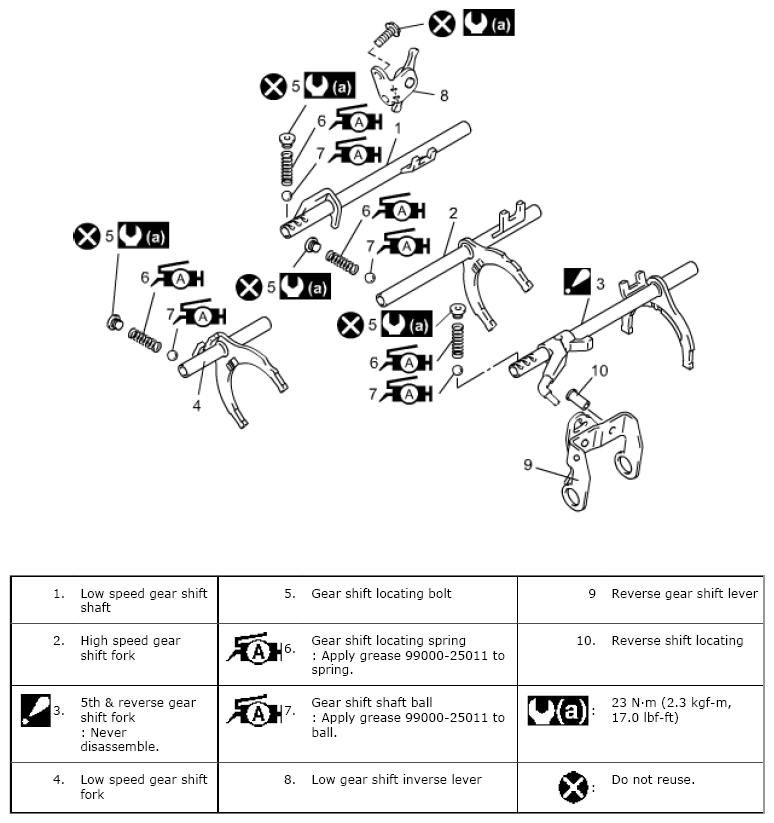

Fig 1: Exploded View Of Gear Shift Shaft And Fork
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
