Gear Shift Lever Front Case Assembly Removal and Installation: Removal

  1. Dismount transmission assembly referring to MANUAL TRANSMISSION ASSEMBLY DISMOUNTING AND REMOUNTING .
  2. Remove gear shift lever front case assembly (1) from transmission rear case.

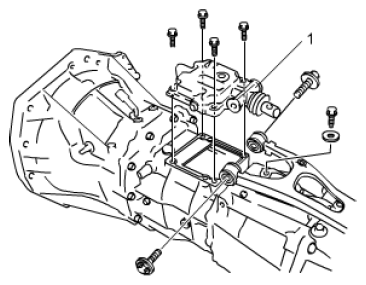

    Fig 1: Identifying Gear Shift Lever Front Case Assembly
    G08899125Courtesy of SUZUKI OF AMERICA CORP.
